Product Details
＋

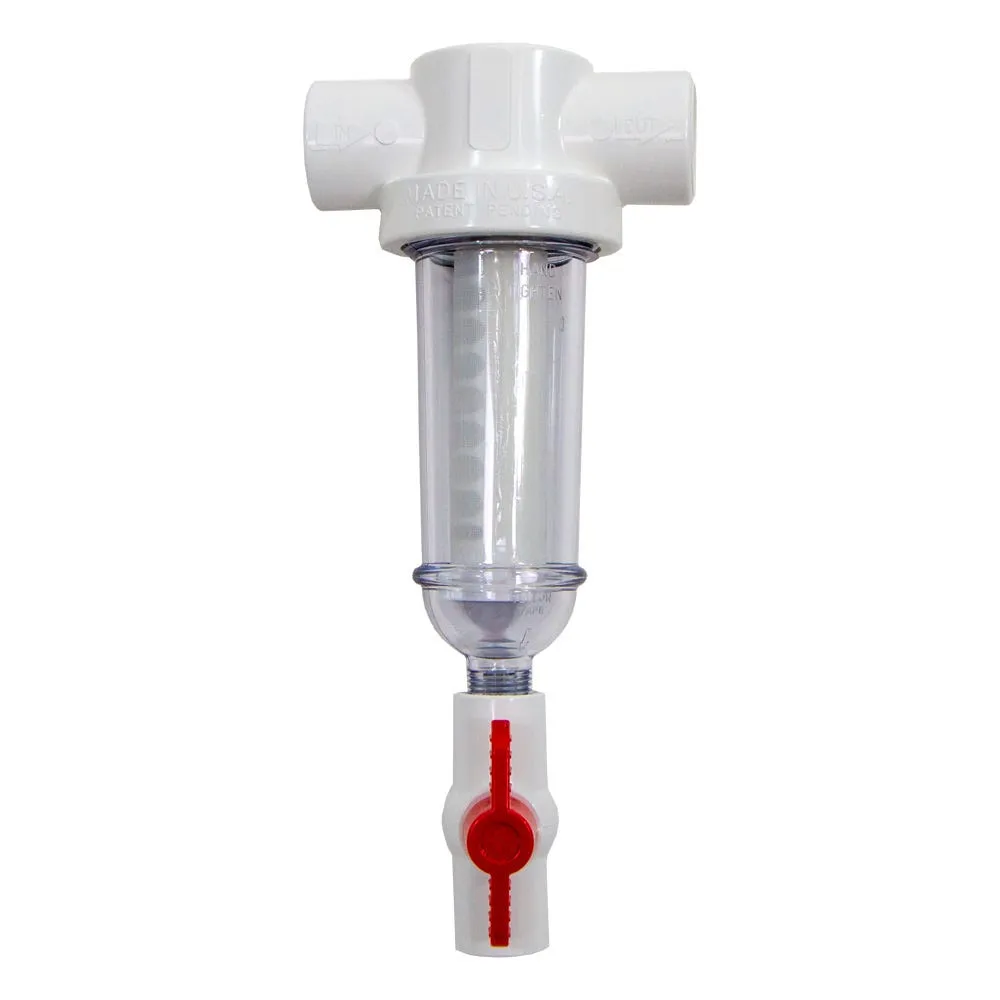

Centrifugal Sediment Spin-Down Filter By US Water Systems | 3/4"
The US Water Systems Centrifugal Spin-Down Sediment Filter makes removing solid particles like dirt, sand, sediment, and debris simple and cost-effective. The number one feature of the spin-down filter is the ability to be cleaned and reused. The patented tornado effect is unlike any other filter in its class. Removing particles from your water has never been easier.
Features And Benefits

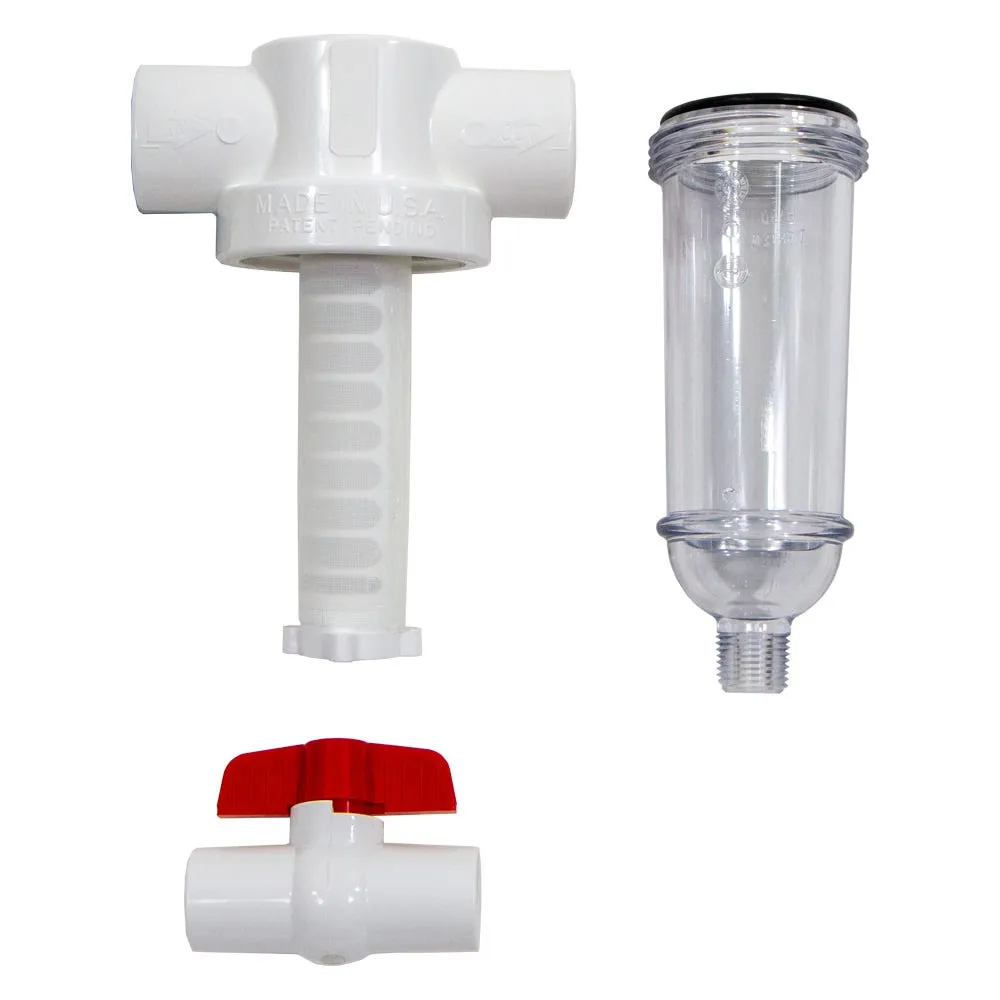

- Clear cover is easily removed for complete cleaning - no tools required
- Sediment can be seen clearly through the clear cover so you know when to clean the filter
- Sediment is quickly and easily removed by opening the ball valve at the bottom of the filter cover
- Polyester filter screen is reusable and available in many mesh sizes
- No down time - spin-down filter is simply flushed
Specifications
- Inlet/Outlet: 3/4" FPT
- Drain: 1/2" FPT
- Height: 11.375"
- Width: 7.25"
- Flow Rate: 25 GPM Maximum
- Maximum Pressure: 150 PSI @ 73F
- Maximum Temperature: 100F @ 40 PSI
Mesh To Micron Conversion Table
| Mesh | Micron | Recommended Use |
|---|---|---|
| 24 | 711 | General Use - Shale, Sand, Shell, or Debris |
| 30 | 533 | General Use - Shale, Sand, Shell, or Debris |
| 40 | 381 | General Use - Pipe Scale and Coarse Sand |
| 60 | 254 | Sprinkler Systems, Faucet Aerators, and Sand-Sensitive Valves - Pipe Scale and Coarse Sand |
| 100 | 152 | Drip Irrigation Systems, Poultry Growers, and Watering Devices - Fine Sand and Grit |
| 140 | 104 | Fogger Spray Nozzles - Fine Sand and Grit |
| 250 | 61 | Pre-Treatment - Very Fine Sand and Grit |
| 500 | 30 | Pre-Treatment - Very Fine Sand and Grit |
| 1000 | 15 | Pre-Treatment For Reverse Osmosis and Ultrafiltration - Ultra-Fine Powder or Dust-Like Sediment |
