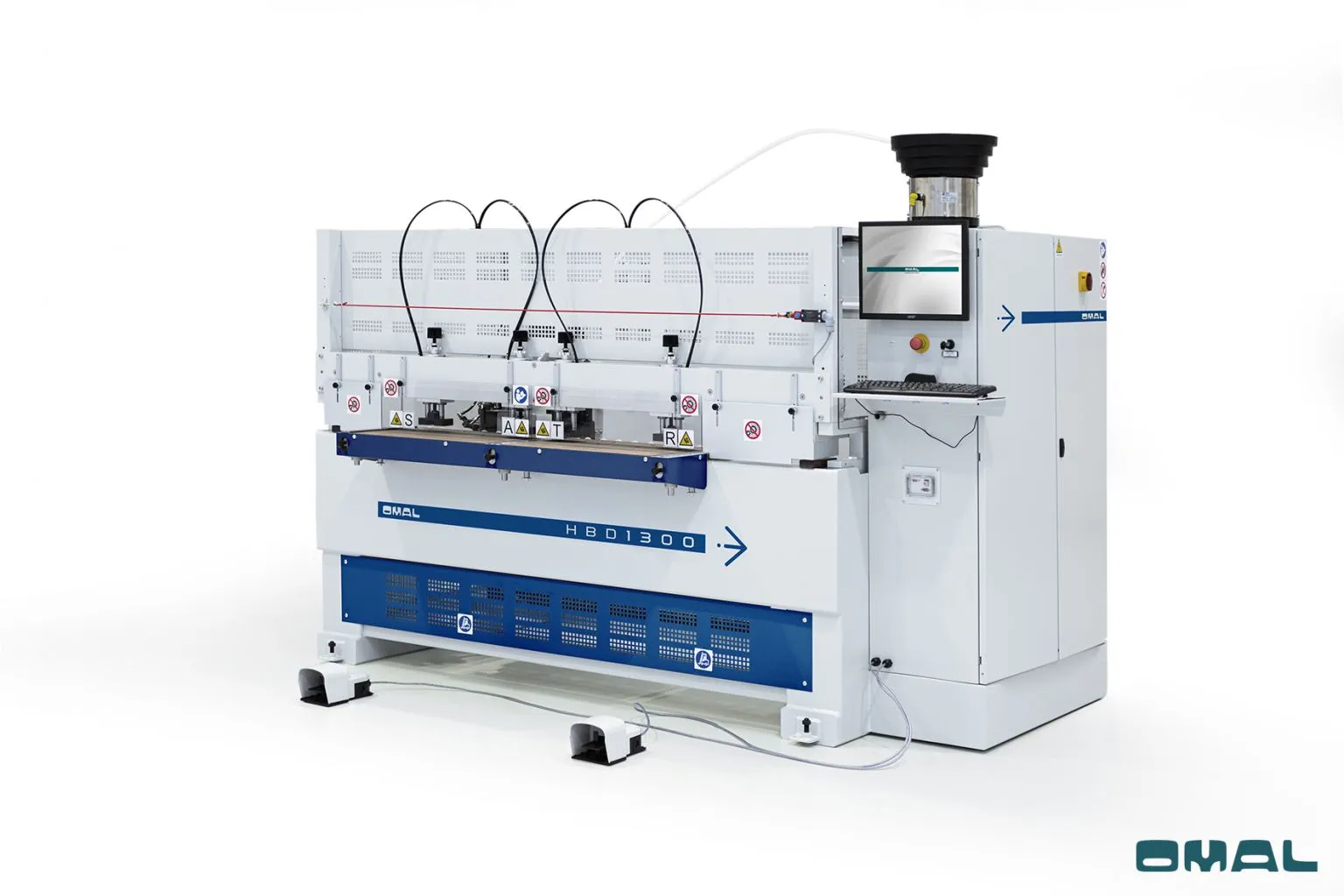

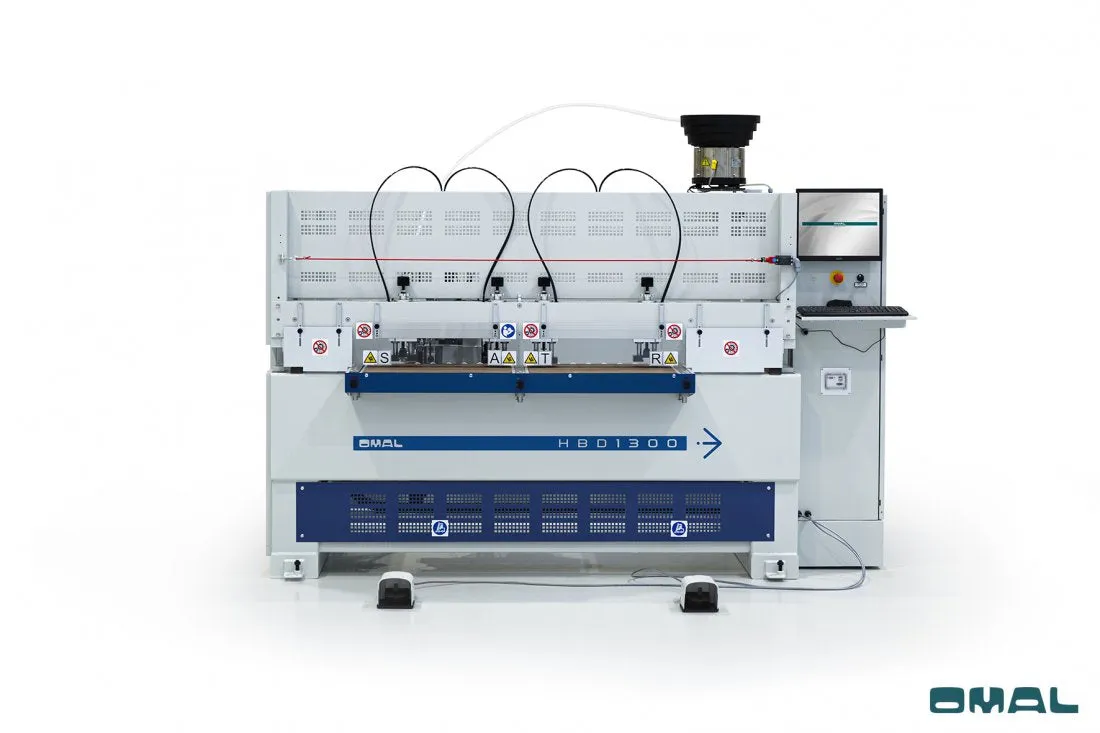

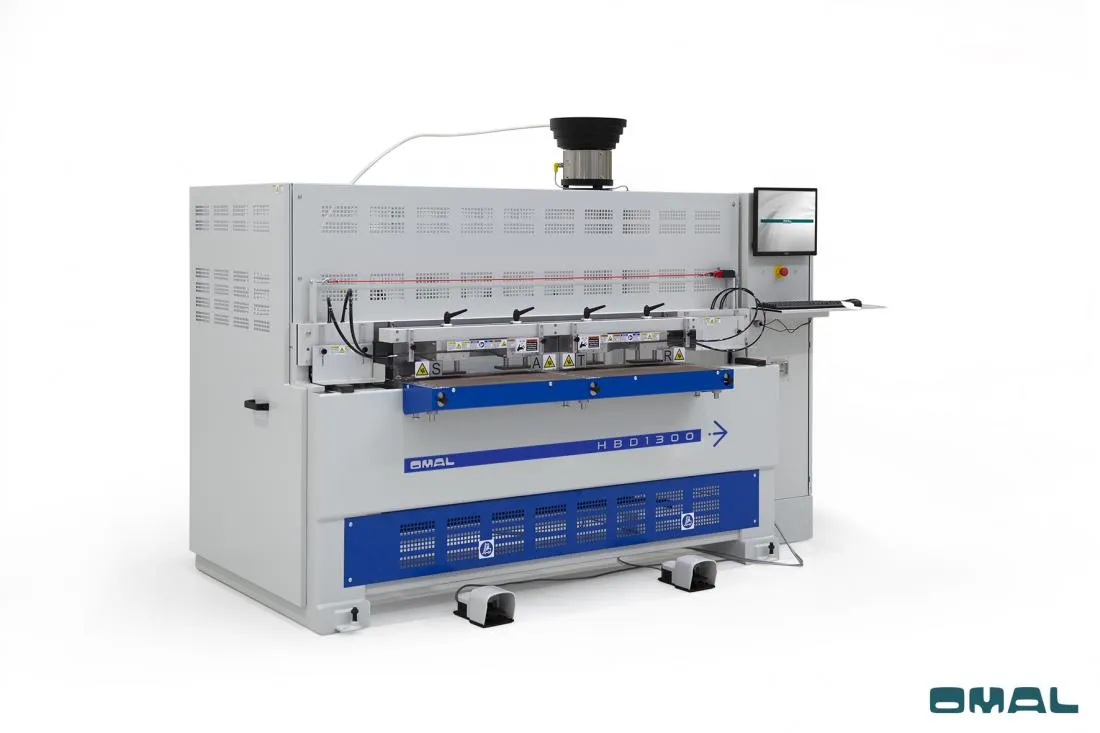

The HBD 1300 OF Horizontal Bore, Glue, and Dowel machine is a numerically controlled machine to drill, glue, and insert dowels on horizontal pieces with four loading zones, a 4' work table, and 8' capacity. This machine features the OMAL Sure Shot dowel delivery system, guaranteeing a dowel and glue/water with every insertion.

This machine can be equipped with horizontal drill and dowel unit, vertical drill, CNC Z-axis and laser and auto-start features.

Features

• (OF) Open-Frame, 4’ table, 8’ piece
• Cycle time of approximately one second
• Single or multiple horizontal and vertical drills

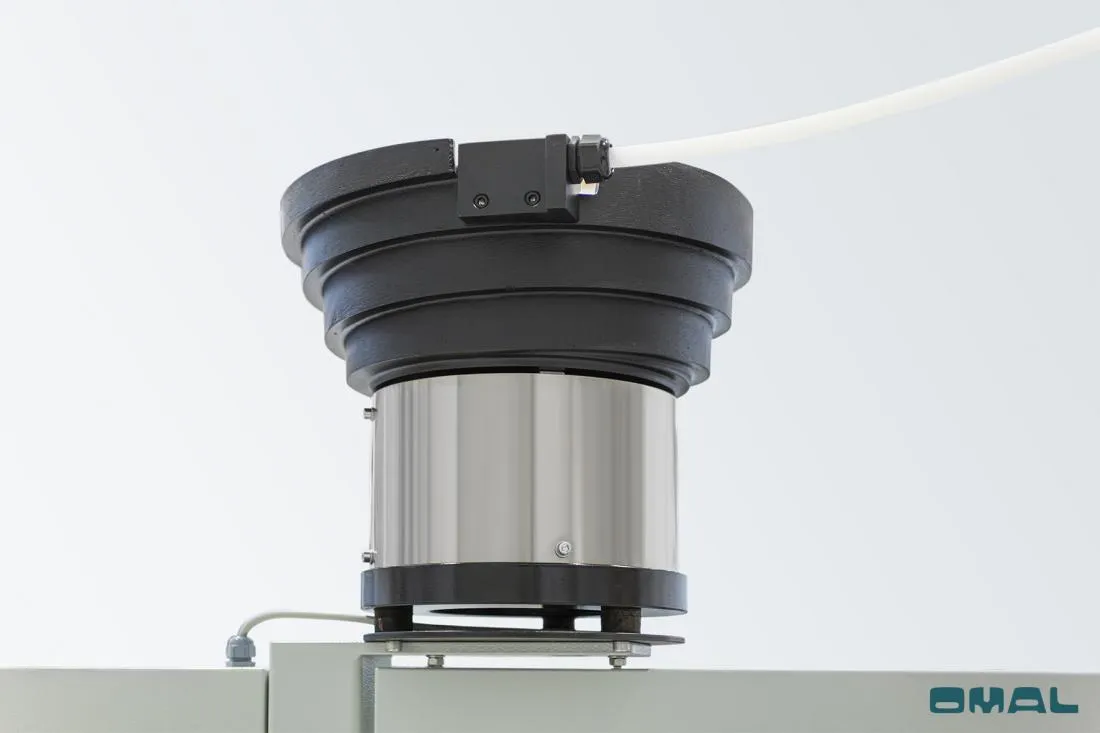

• Sure Shot Dowel Revolver System

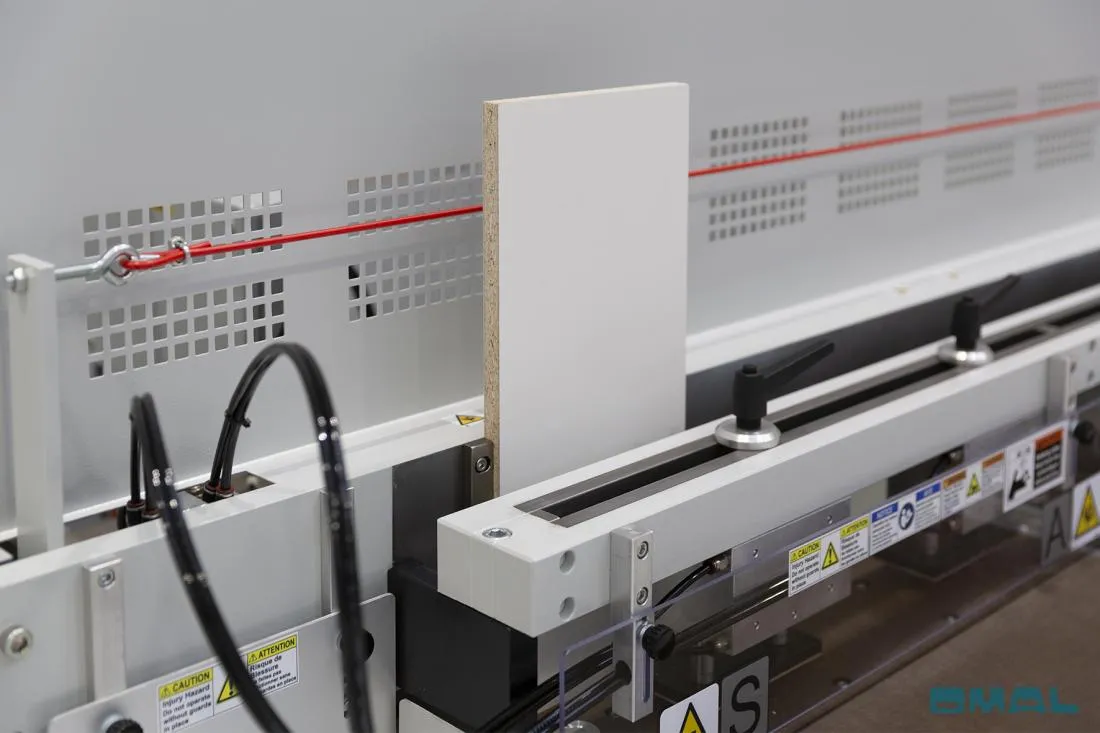

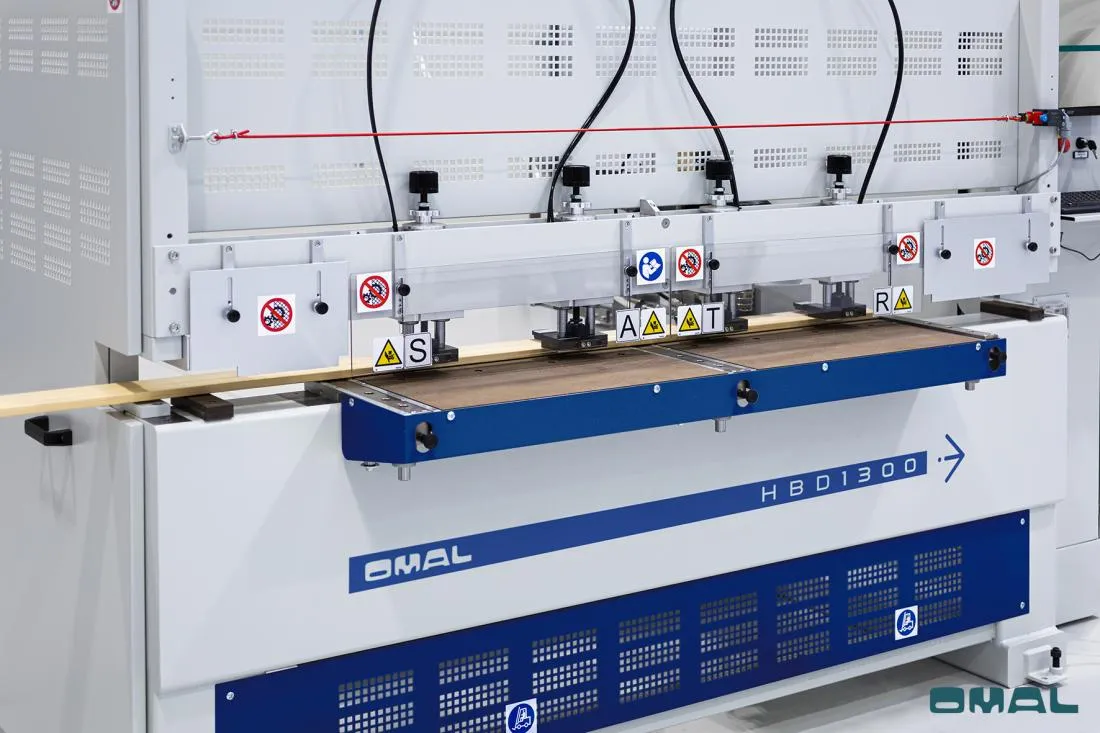

• Indexable center and side fences

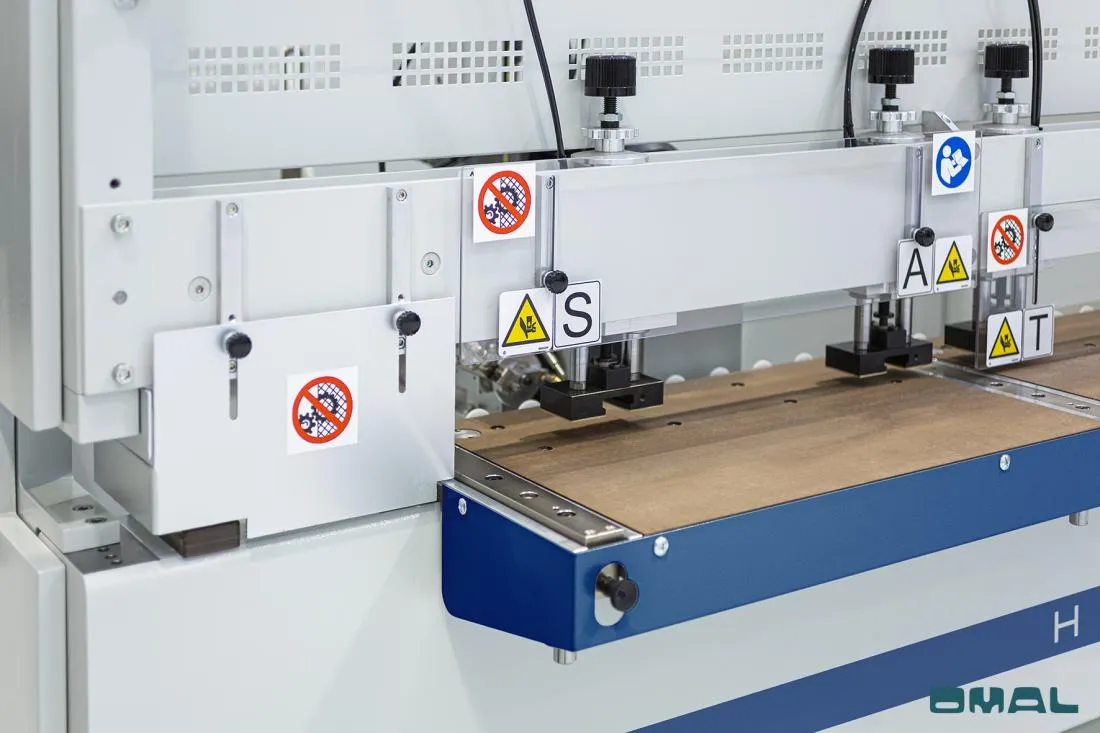

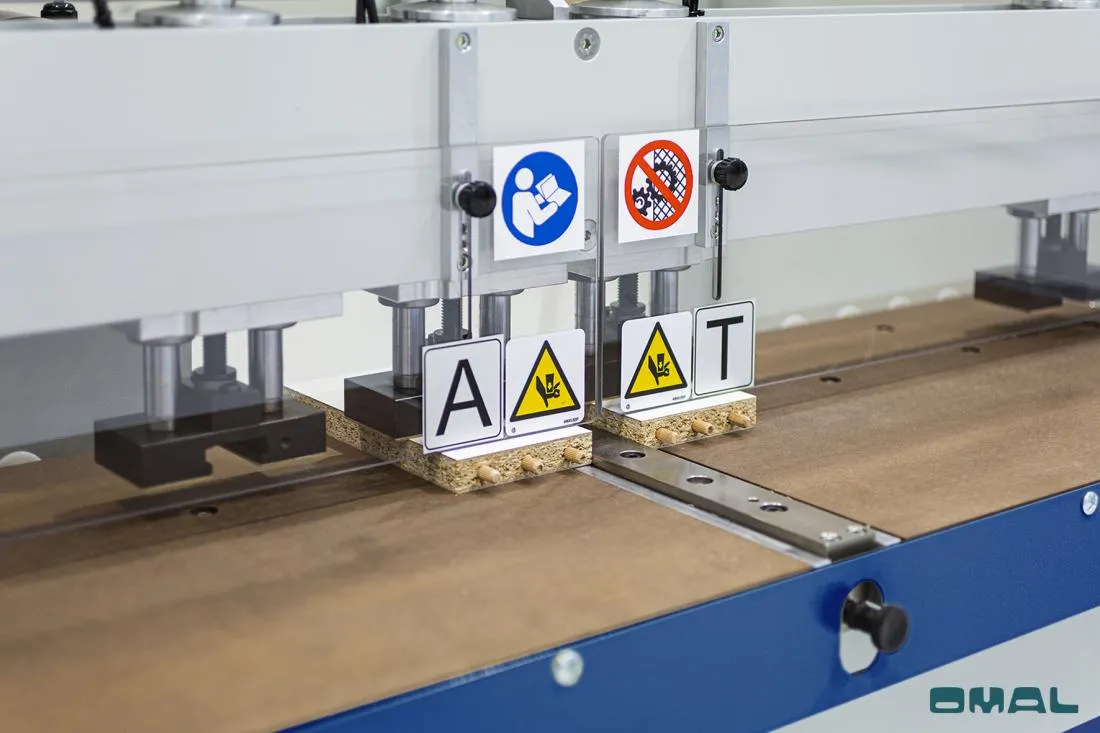

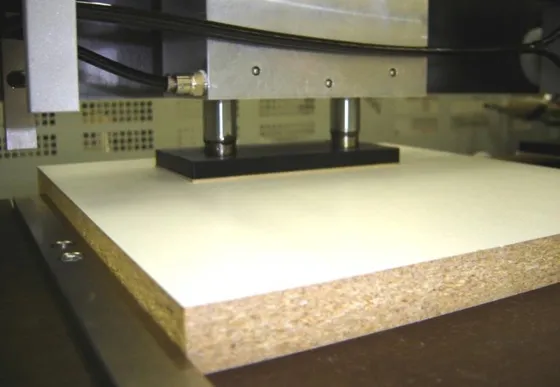

• Large robust clamps

Advantages

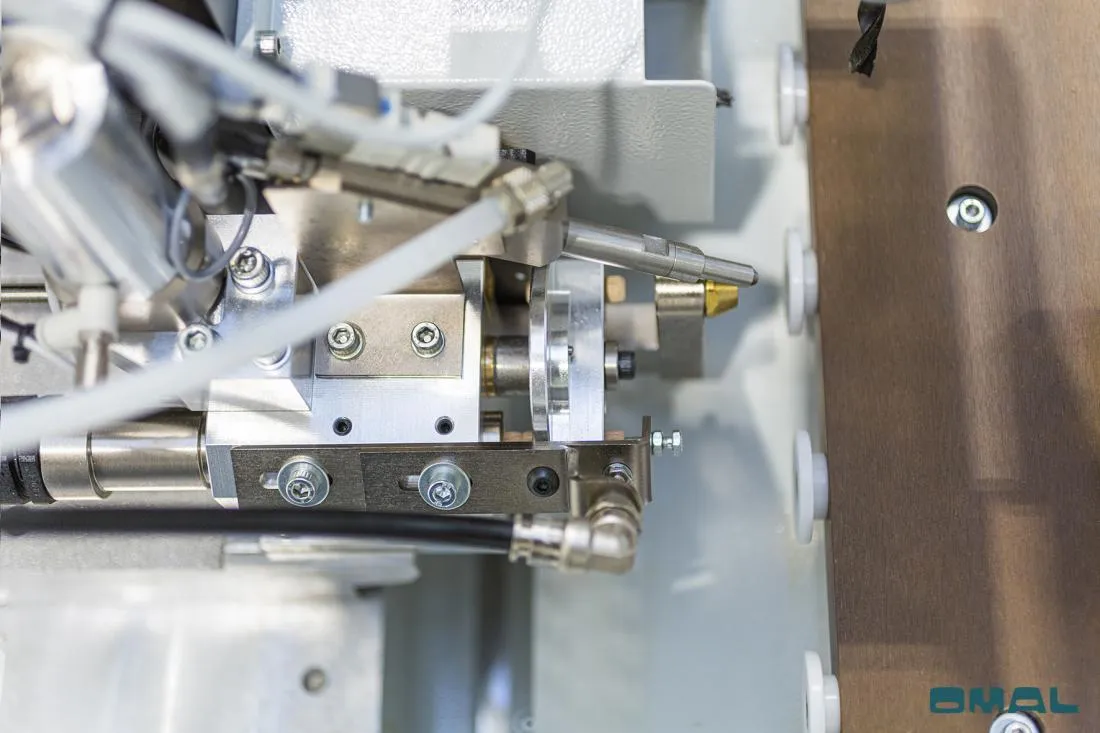

The OMAL Sure Shot System

• Insertion revolver holds dowel in queue
• Next dowel checked via fiber optic sensor
• No Jam – OMAL's Sure Shot guarantees a dowel inserted every time

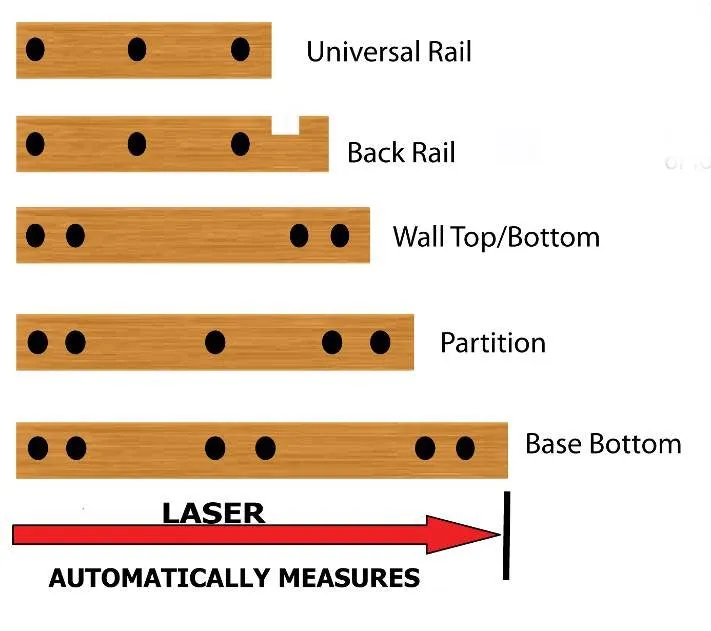

The OMAL Laser System

• Automatically measures part
• Populates the program list for part width
• Calculates all dowel locations for part
• With Auto-start Sensor run parts in any sequence without calling up program
• With Auto-start Sensor option, machine senses panel no need to push start button

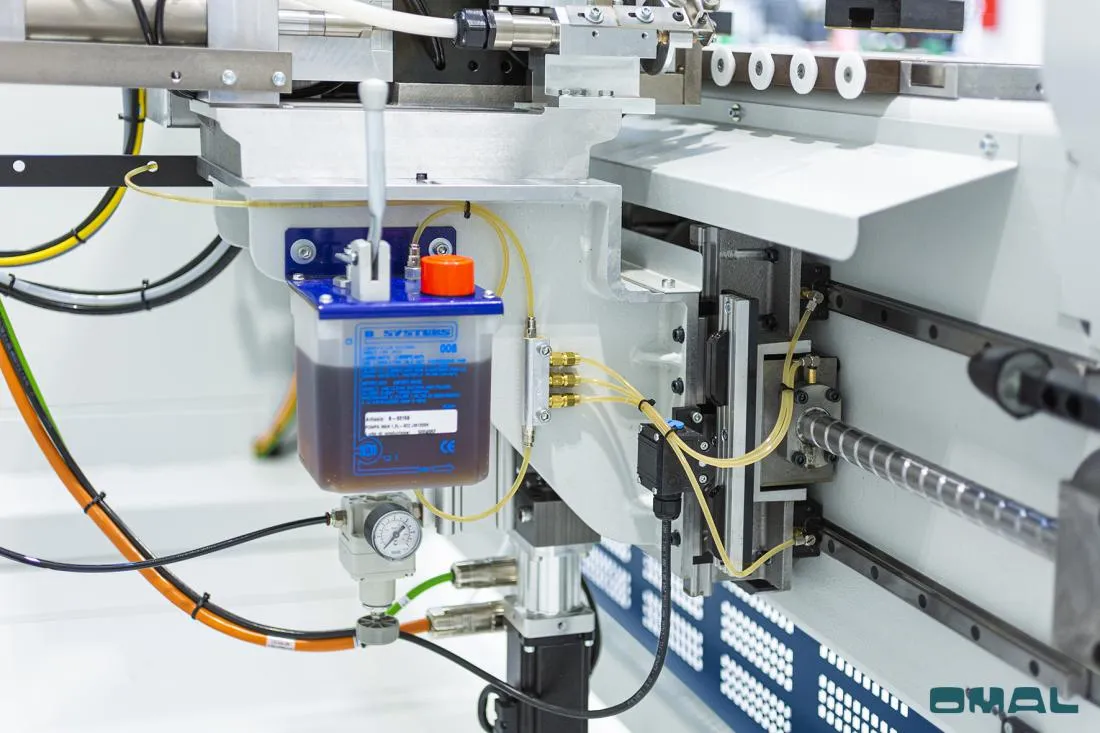

The machine has central and side drop-down fences, central lubrication, and full PC control with Wood Systems Machine Interface.

Installation $3,200.00
