Experience superior water management with the Rocksolar 600W Pump. Engineered for high efficiency, this pump is compatible with solar power systems, ensuring optimal performance across a range of applications from home gardening to agricultural irrigation. With a robust 0.8HP motor and a voltage range of 40-96V, it combines power with energy efficiency.
Technical Specifications
- Power and Efficiency: 0.8HP motor, designed for 40-96V operation with best performance at 60-76V. Delivers 0.8 HP.
- Solar Panel Compatibility: 2X400W panels for flexible solar configurations.
- Performance Metrics: Flow rates from 3.6 m³/h at minimal head height to zero at the maximum depth of 289 feet.

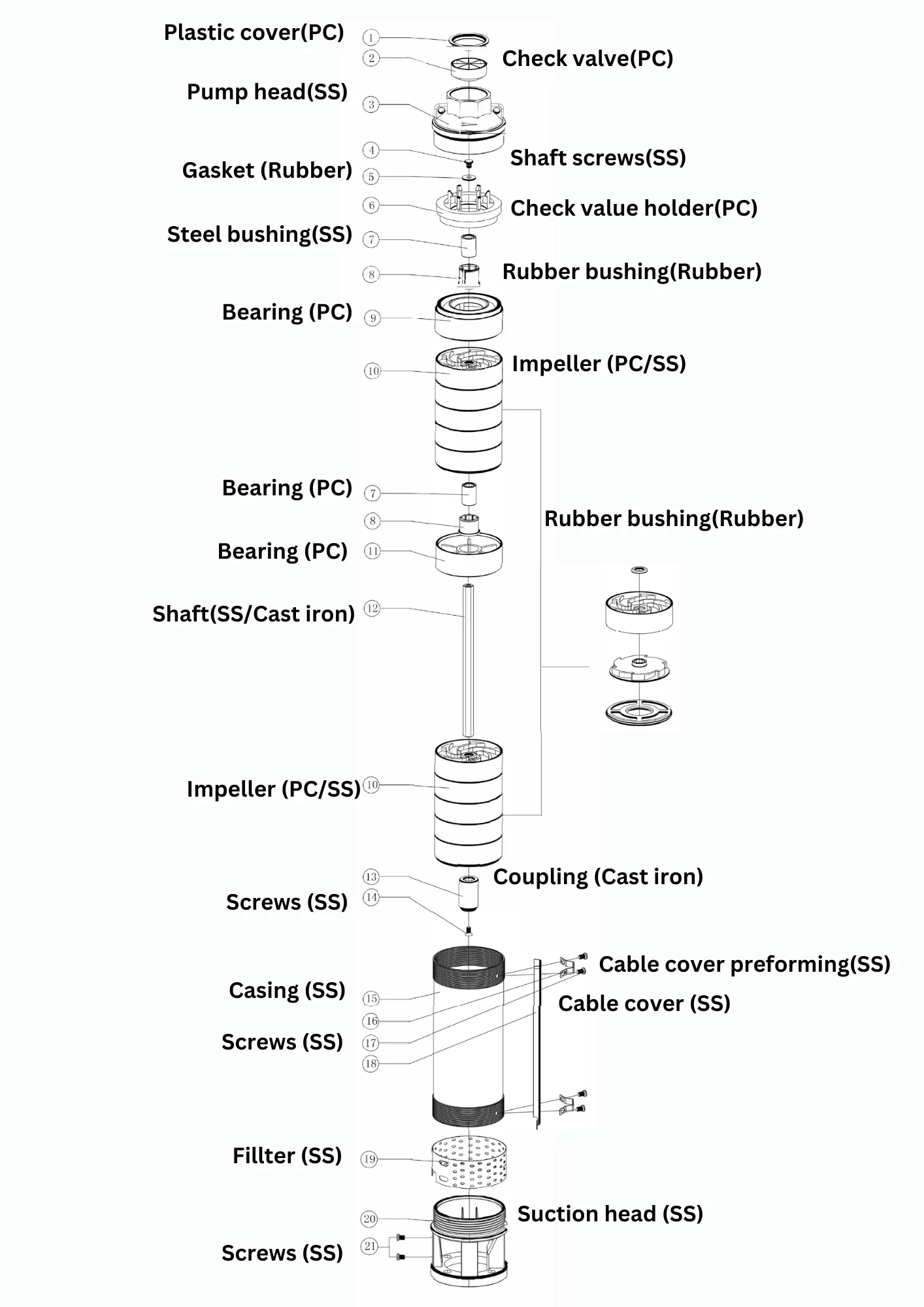

- Design and Construction: Features a sturdy 3-inch diameter and a 1.5-inch outlet, crafted for easy integration and durability.

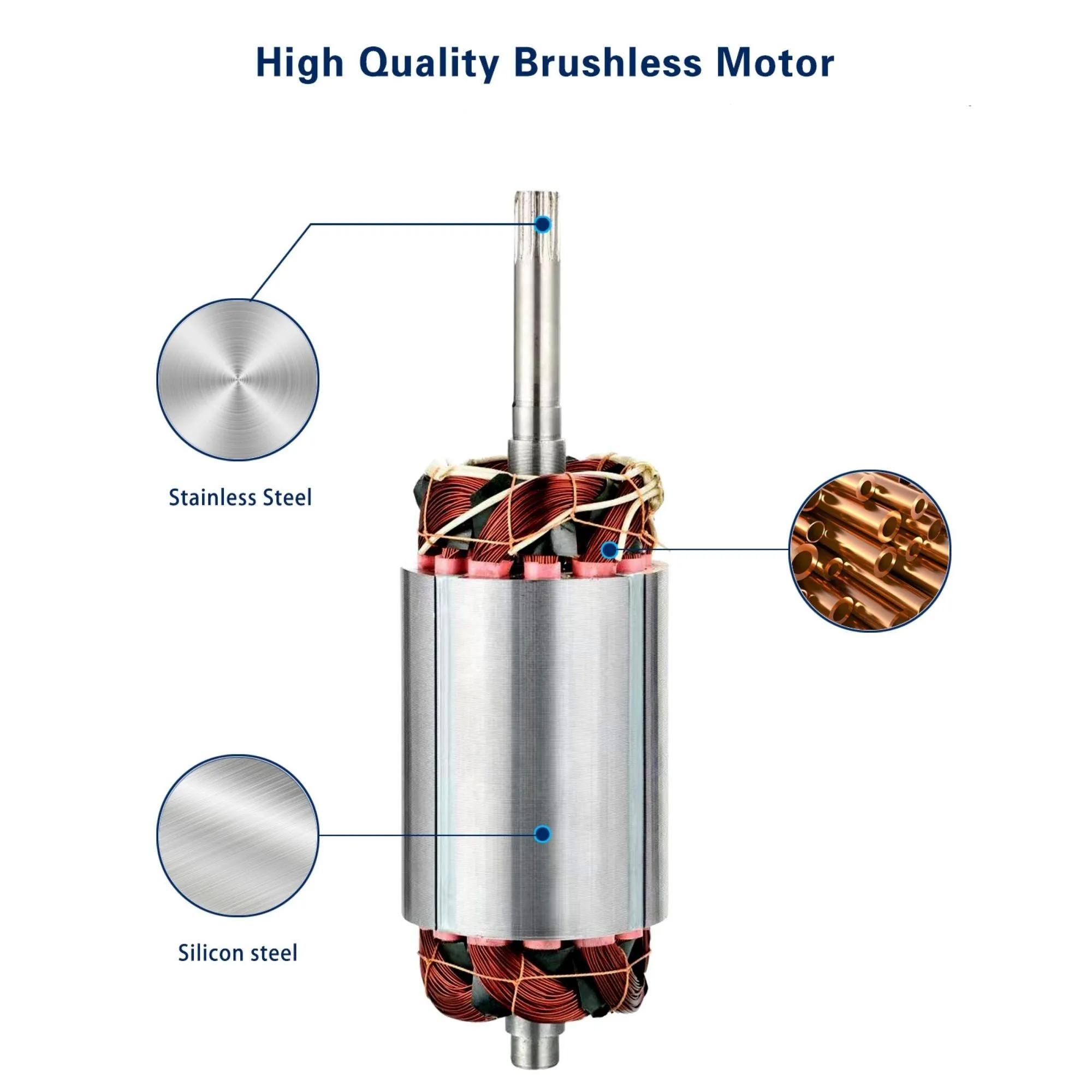

- Model Specifics: Brushless permanent magnetic motor with an internal controller, ensuring long working life and high efficiency.

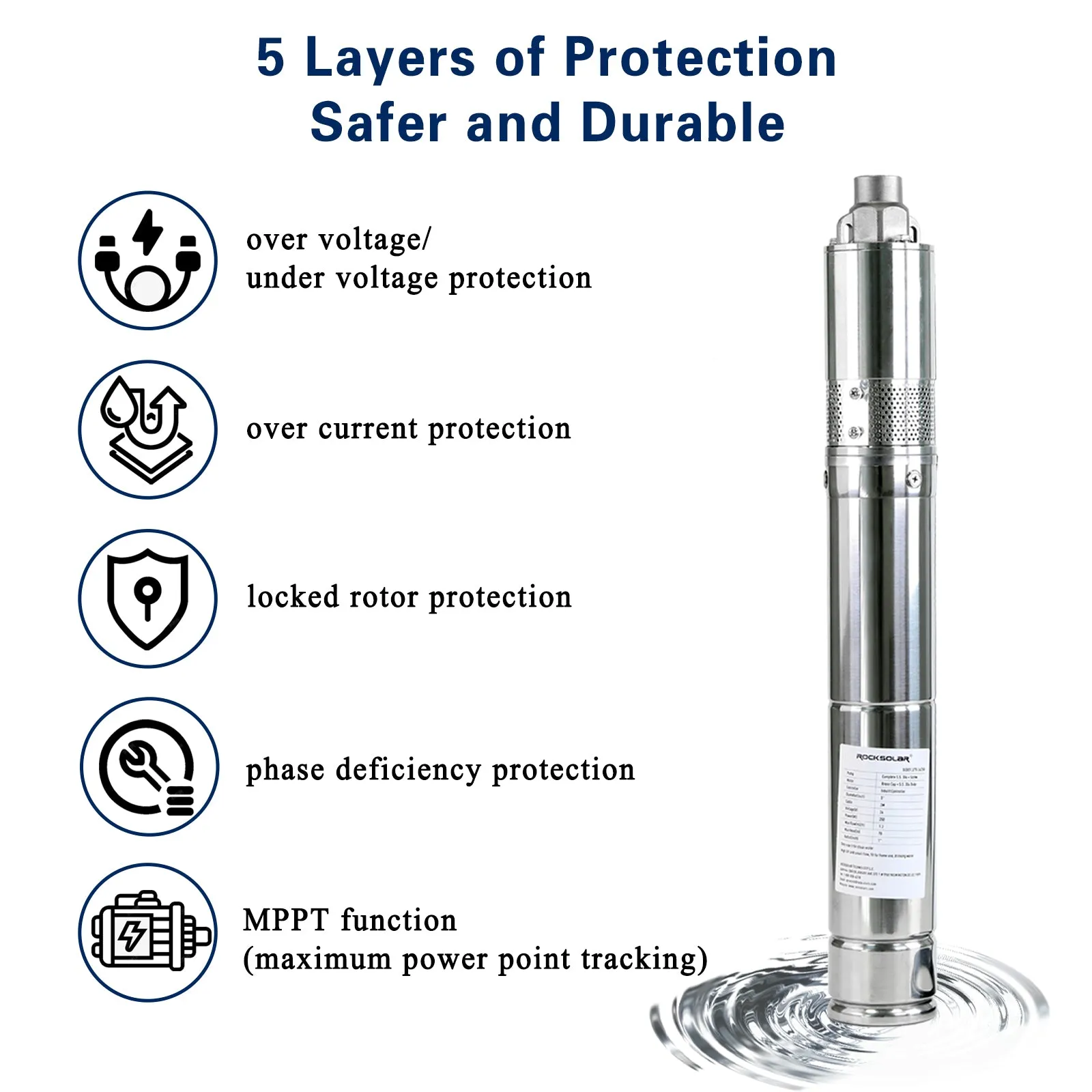

- Safety and Standards: Dry-running auto protection and Franklin motor standard for reliability.

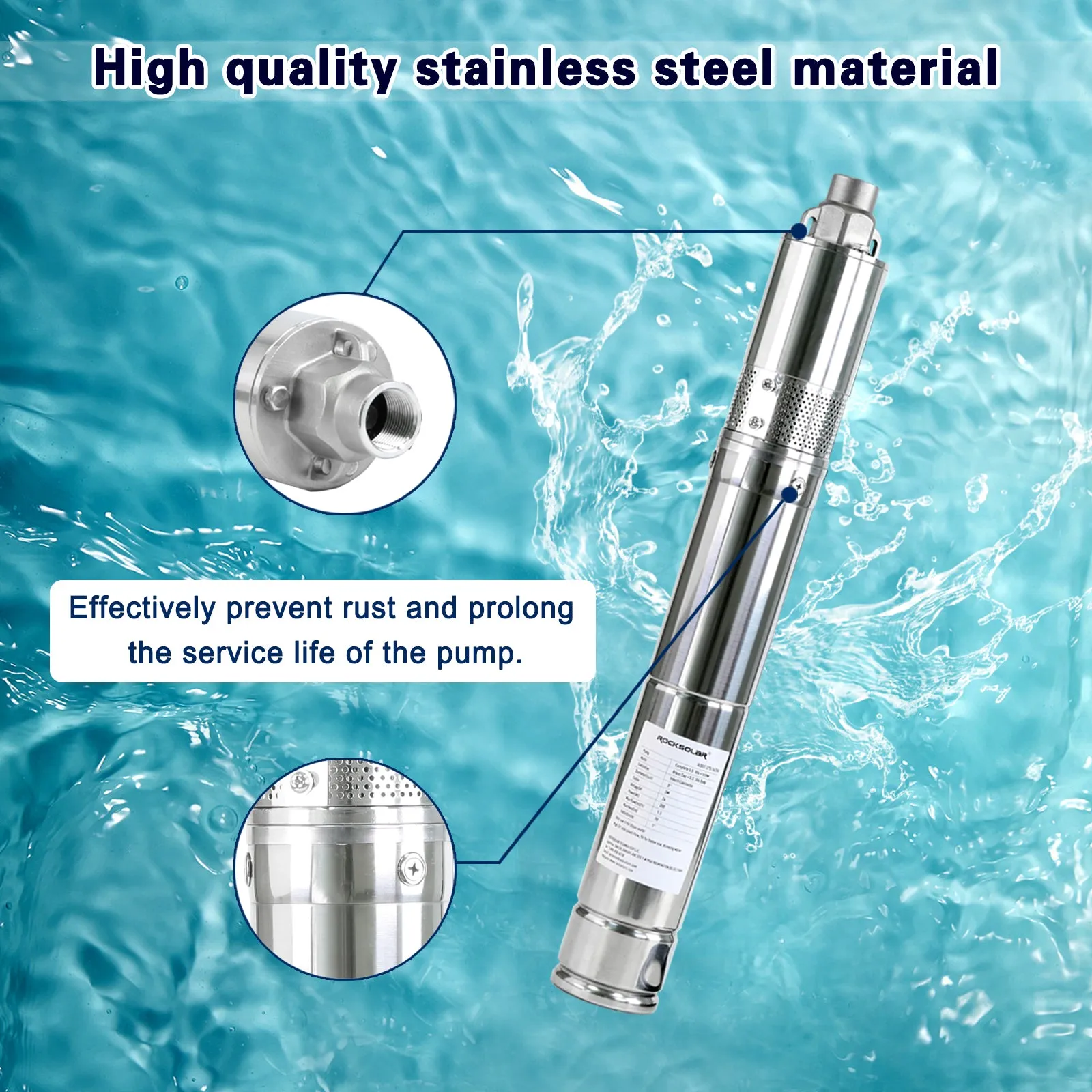

- Material and Cooling: High-quality SS304 material and water-cooled motor for enhanced durability.

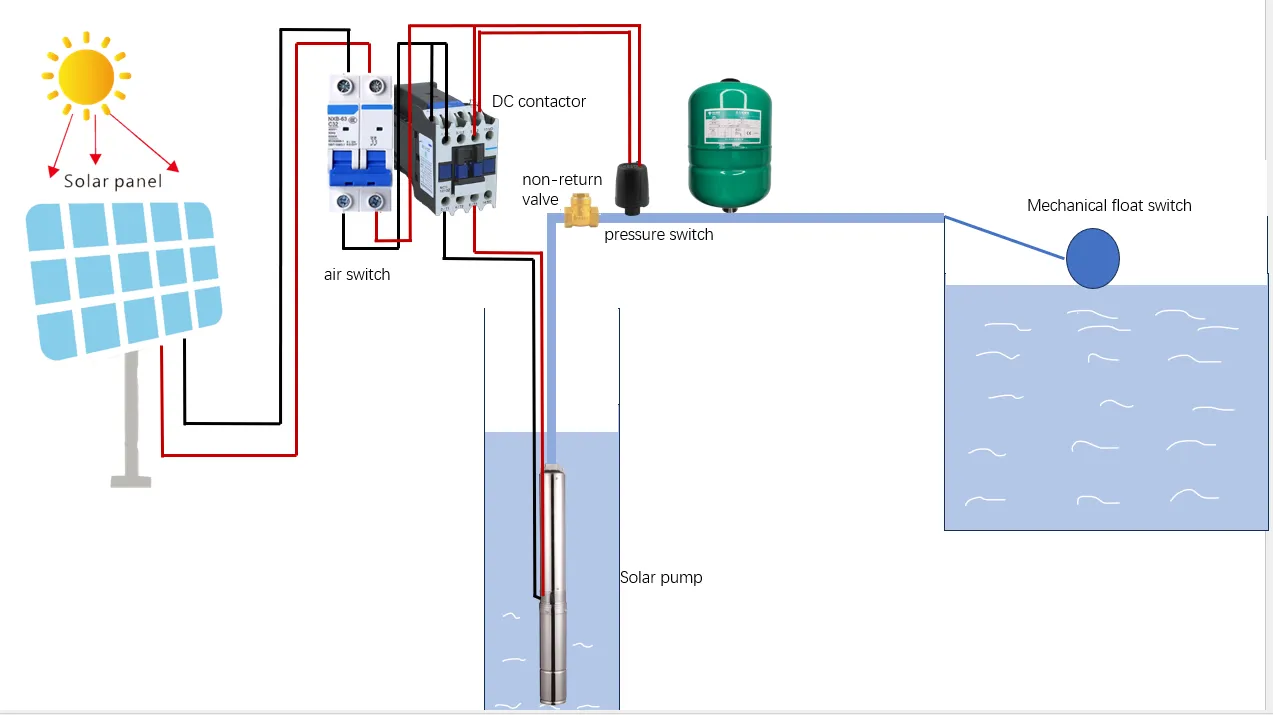

- Additional Features: Can be powered by both solar panel and battery, with easy installation and no need for an external controller.
The Rocksolar 600W Pump not only offers significant operational flexibility but also stands out with its compatibility with both existing and new solar installations. Whether for daily operation or emergency use, this pump is your dependable choice for efficient and renewable water pumping solutions.

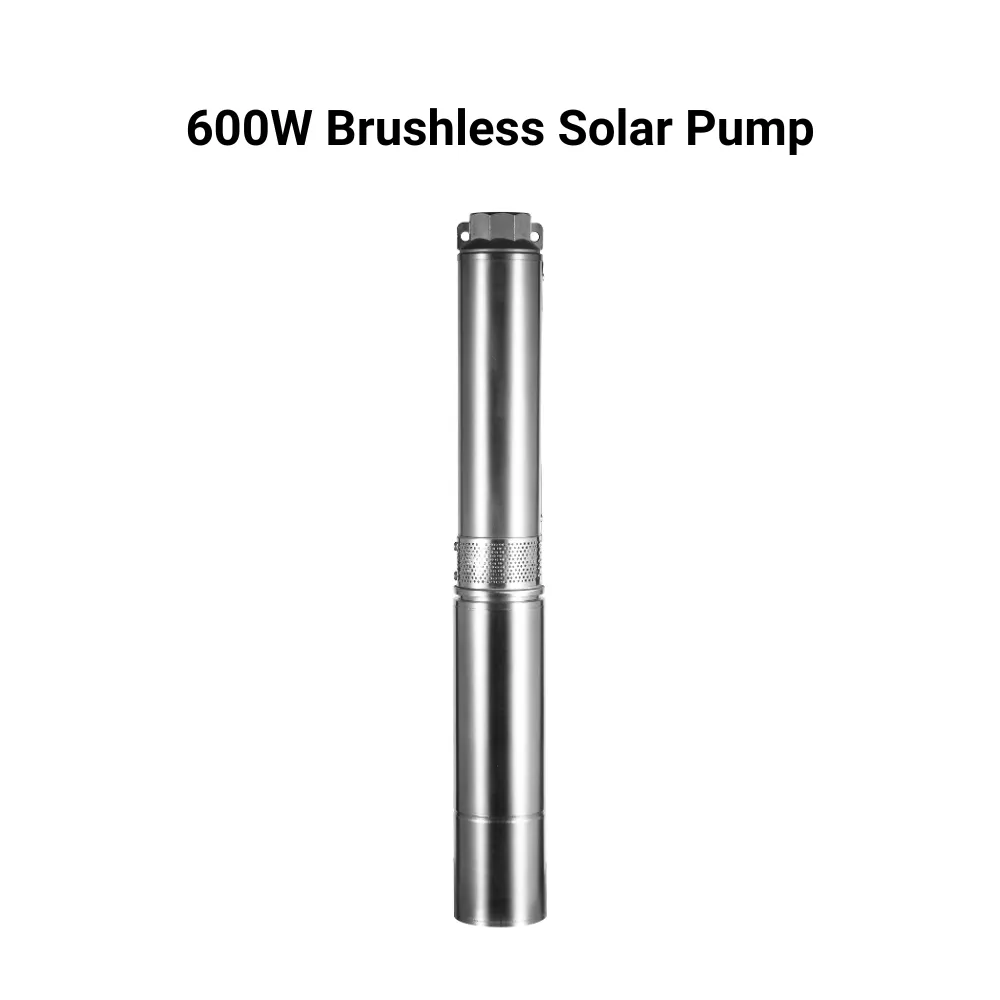

- Rocksolar 600W Brushless Solar Pump: The main unit featuring a high-efficiency brushless motor and an in-built controller for easy operation.
- Solar Panel Connectors: Connectors to facilitate easy and secure connection to solar panels.

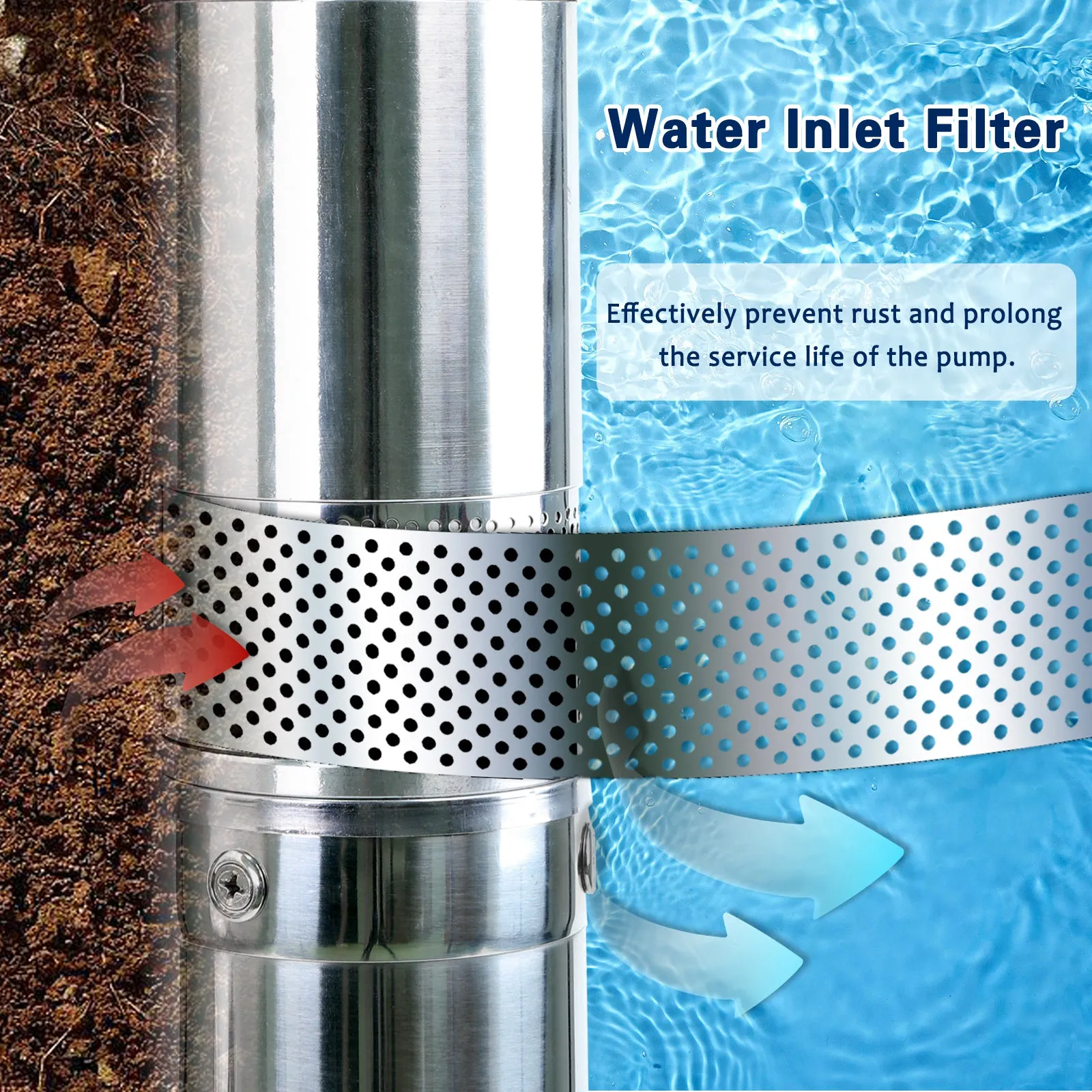

- Water Intake Mesh Filter: Helps in filtering out debris and protecting the pump’s internal components.

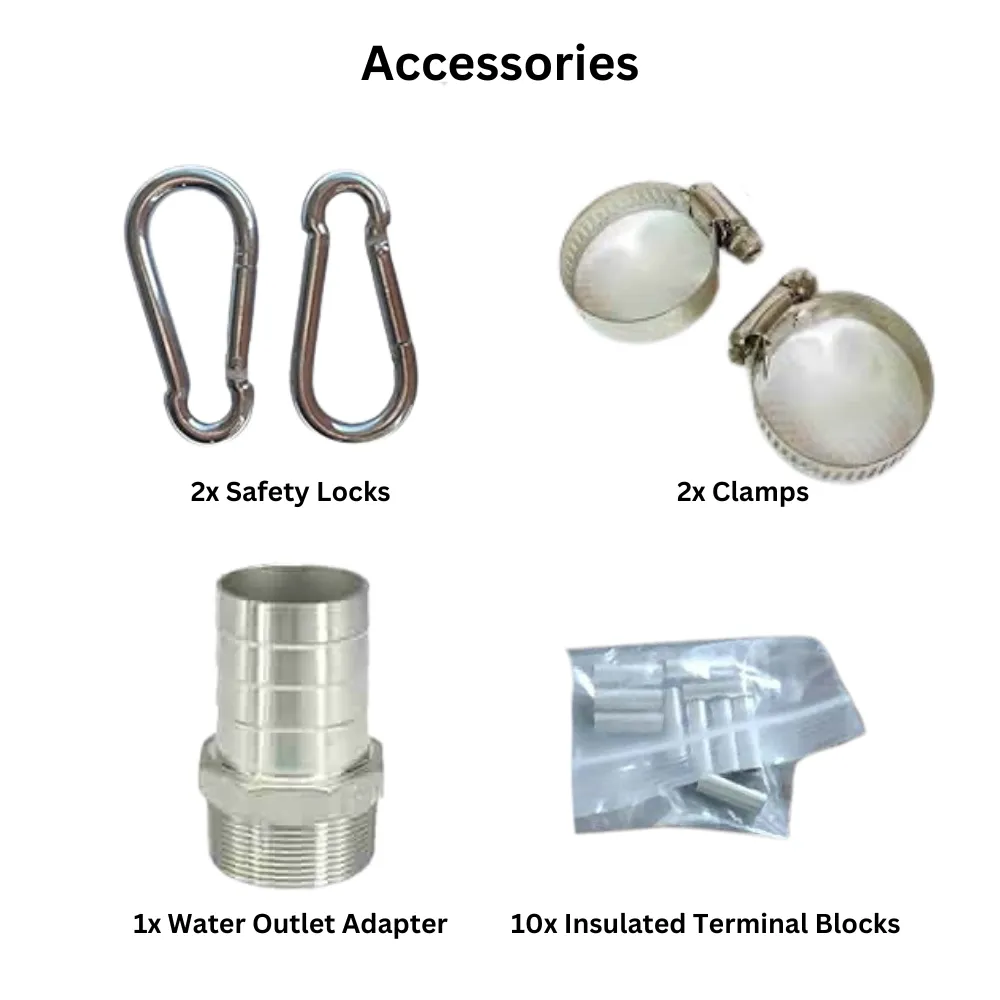

- Mounting Brackets: For securing the pump in place, ensuring stable installation.
- User Manual: Detailed instructions on installation, operation, and maintenance.
- Warranty Card: Information on warranty terms and conditions to ensure peace of mind.
- Set of Installation Tools: Basic tools required for the initial setup and installation.
| Specification | Details |
|---|---|
| Model | Rocksolar 600W Brushless Solar Pump with In-Built Controller |
| Power and Motor | 600W, 0.8 HP |
| Voltage Range | 40-90V, Best at 60-76V |
| Solar Panel Compatibility | Can be paired with two 340W solar panels |
| Max Flow Rate | 3.6 m³/h at 0 meters head |
| Max Head | 88 meters |
| Pump Diameter | 3 inches |
| Pump Outlet | 1.5 inches |
| GPM | 15.85,15.06,13.74,12.42,10.57,8.45,6.60,4.75,2.64,0 |
| Height(F) | 0,33,65,98,131,164,197,230,262,289 |
The Rocksolar 600W Solar Pump is designed to be powered by solar panels, with optimal performance using two 340W panels. It can also operate within a voltage range of 40-90V, best at 60-76V.
The maximum flow rate of the Rocksolar 600W Pump is 3.6 m³/h at a head height of 0 meters, decreasing as the head height increases, up to a maximum of 88 meters.
Yes, the Rocksolar 600W Pump is capable of reaching a maximum head of 88 meters, making it suitable for deep well water pumping applications.
Yes, the Rocksolar 600W Pump is built with a robust stainless steel construction and a water-cooled motor, making it durable and reliable for long-term use in outdoor environments.
Yes, the Rocksolar 600W Pump comes with a standard 5 year warranty.
