Product Details
+
Compact modern Italian designed Digital TV Antenna suitable for all Boats and RV's. Low Noise Factor, High Gain Amplifier Easy to install with mount and cabling.
Key Features
- 23.5 dB Gain
- High Gain Amplifier
- Low Noise Factor
- TV DVBT/TNT and HDTV Antenna
- Ideal for boats & RV's
- Dia: 70mm x Height 165mm
- Lightweight at 110g
- Easy to install
- Integrated Mount
- 5m Integrated Coax cable
- 12V Power Inserter
Whats in the Box
- Ballade Antenna and Mount

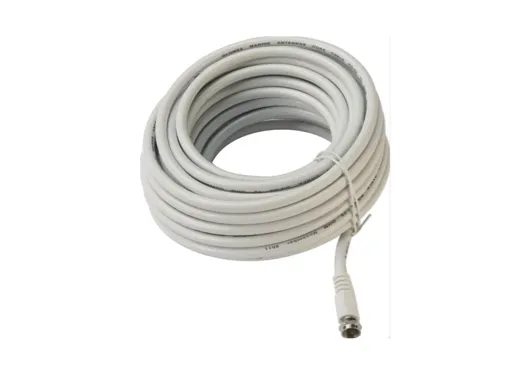

- 5m (17') Integrated Coax Cable

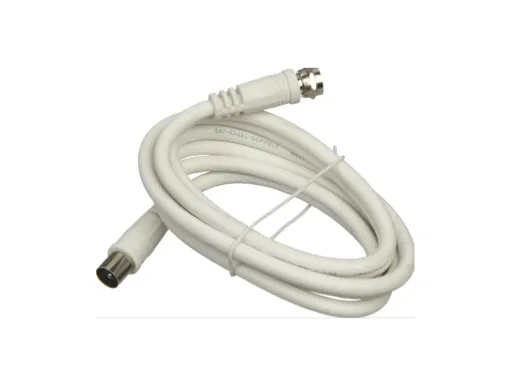

- 1.5m (5') TV Cord Set

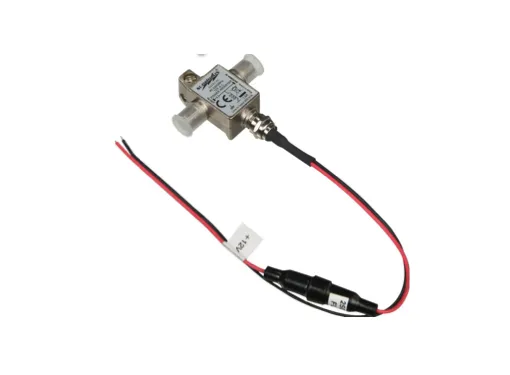

- 12V dc Power Inserter
Techy Bits
- Antenna Diameter : 70mm (2.8")
- Antenna Height : 80mm (3.2")
- Base Diameter : 70mm (2.8")
- Antenna Weight : 110g (4 oz)
- Radome Material : ASA
- Angle of Reception : 360°
- Polarization : Horizontal
- Impedance : 75 OHMS
- Frequency Range : 170/890MHz
- Gain Average : 23.5 dB
- Noise Factor : 1.7 dB
- Power Consumption : 20 ma
- Power Supply : 12 Vdc
- TV Set Max : 1
- Termination : Cable & F Connector
- Weight : Antenna 110g (4oz)
