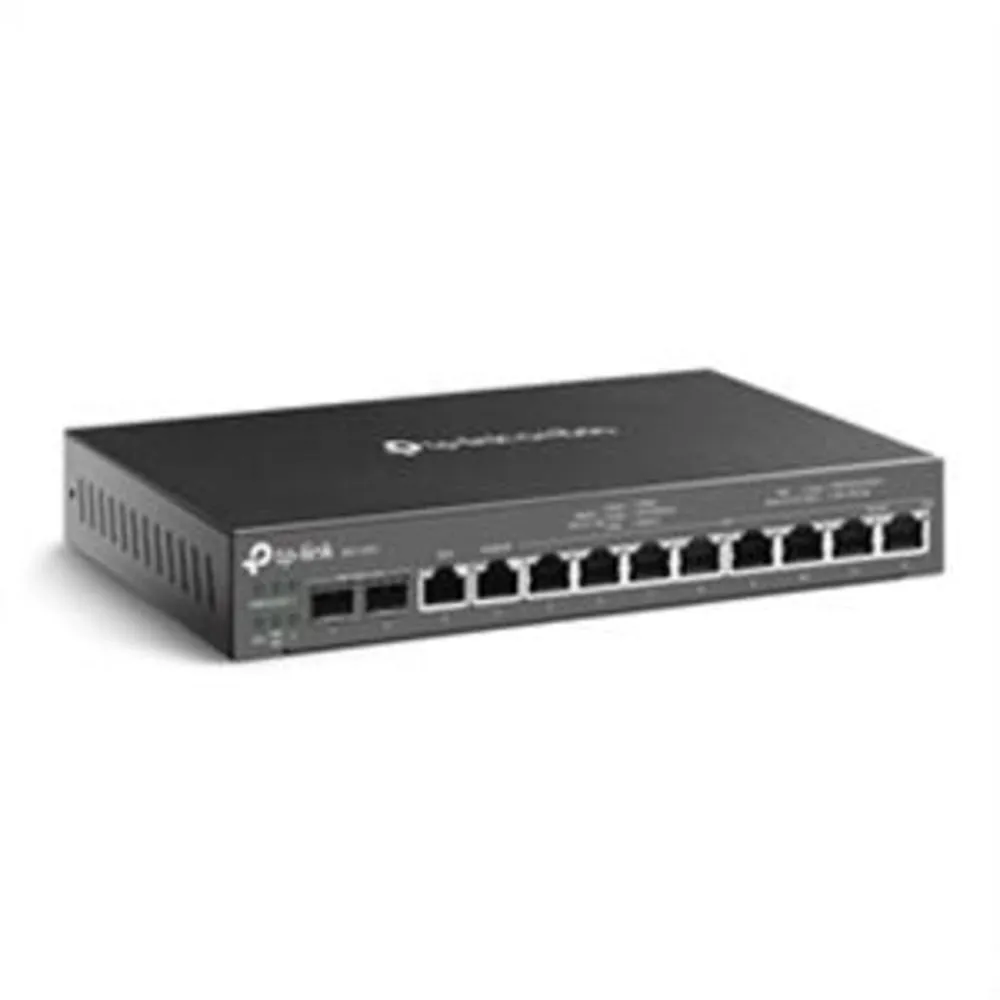

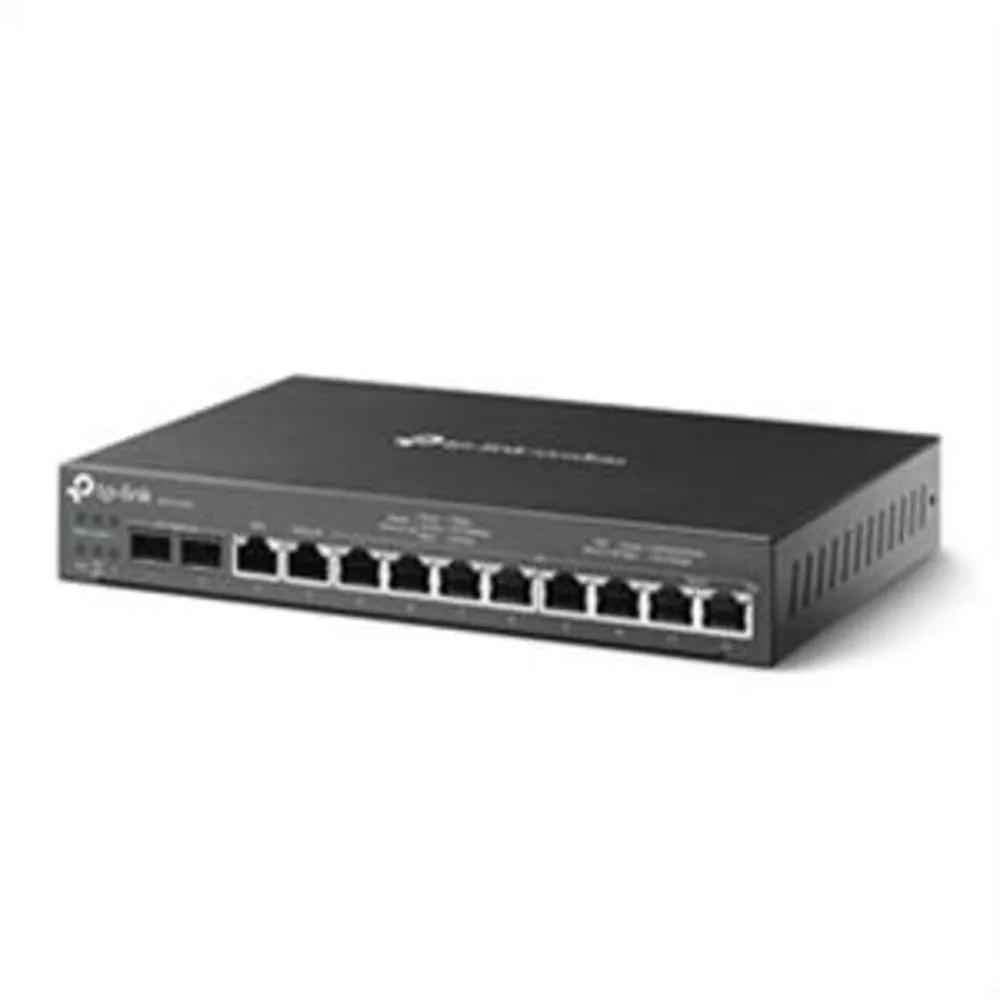

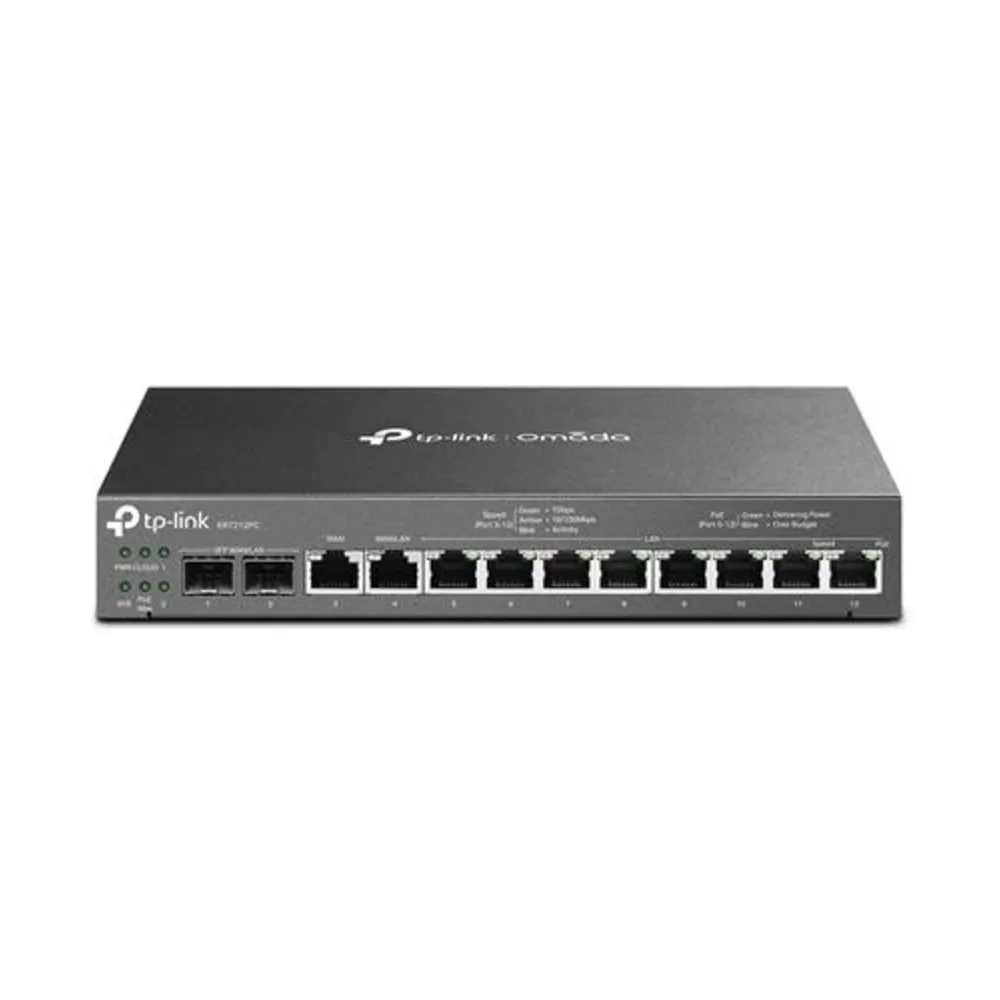

TP-Link Router ER7212PC 3-in-1 Omada Gigabit VPN Router with PoE Port Controller Ability Retail
Omada 3-in-1 Gigabit VPN Router3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether.
Professional Hardware: Dual-Core 1.2 GHz CPU with 1GB DDR3 memory provides stellar performance for up to 12x Gigabit ports.
Up to 4x WAN Ethernet Ports: Equipped with 2x Gigabit SFP WAN/LAN ports, 1x Gigabit RJ45 WAN port, and 1x Gigabit RJ45 WAN/LAN port.
110W PoE Budget: 8x 802.3at/af-compliant PoE RJ45 LAN ports yield a total power supply of 110W.
Centralized Management: Cloud access and the Omada app offer convenience and easy management.
Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
Easy Installation: Fanless and compact design for desktop and wall mounting.
Note:
PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Interface
2 Gigabit SFP WAN/LAN ports
1 Gigabit WAN port
1 Gigabit LAN/WAN port
8 Gigabit LAN ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100OHM STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100OHM STP (Max 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity
Fanless
Button
Reset Button
Power Supply
53.5VDC/2.43A Adapter
PoE Budget
8 ports PoE output, 110 W PoE Budget
Flash
8Mb Nor 4 GB EMMC
DRAM
1 GB DDR3
Protection
4 kV surge protection
Enclosure
Steel
Mounting
Desktop/Wall-mount
PERFORMANCE
Concurrent Session
24,980
Sessions /Second
1,900
NAT (Static IP)
935.5 Mbps / 942.1 Mbps
NAT(DHCP)
940.2 Mbps / 941.7 Mbps
NAT(PPPoE)
913.1 Mbps / 935.2 Mbps
NAT (L2TP)
545.0 Mbps / 912.7 Mbps
NAT (PPTP)
523.0 Mbps / 912.8 Mbps
IPsec VPN Throughput (AES256)
168.5 Mbps
