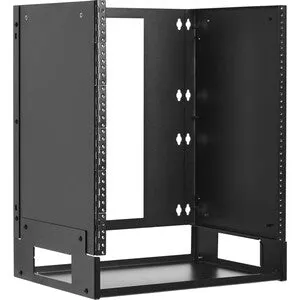

Introducing the Tripp Lite by Eaton 12U Wall-Mount Bracket with Shelf, designed specifically for small switches and patch panels. This innovative solution is perfect for those who need an efficient way to manage their networking equipment without sacrificing valuable floor space. Made from high-quality materials, this wall-mount bracket delivers durability, functionality, and ease of use, making it an essential addition to any home office or small business.

• Space-Saving Design: The 12U wall-mount bracket is the ideal alternative to bulky full-size rack cabinets, allowing you to maximize your available space. Perfect for home offices or small businesses where every square foot counts.
• Hinged Access: This innovative bracket is designed with a hinged feature that provides open and unrestricted access to your equipment and cabling from either side. Easily manage your network without any hassle.
• Superior Construction: Crafted from heavy-duty 14-gauge cold-rolled steel, this wall-mount bracket is built to last. The durable black powder-coated finish not only enhances its aesthetic appeal but also protects it from wear and tear.
• Versatile Compatibility: The bracket supports EIA-standard 19-inch rack equipment, accommodating up to 12U of compatible components, including switches and patch panels from any manufacturer, with a depth of up to 14.75 inches.
• Easy Cable Management: The rear cutout design allows seamless cable feeds through the wall, helping to streamline installations and reduce cable clutter. Enjoy a clean setup that minimizes wear on cable jackets and patch panel equipment.

Technical Details

• Material: Heavy-duty 14-gauge cold-rolled steel
• Finish: Durable black powder-coated
• Mounting Type: Wall-mount with 12-24 mounting screws included
• Capacity: Maximum load capacity of 150 pounds (68 kilograms)
• Compatibility: Supports EIA-standard 19-inch rack equipment, up to 14.75 inches deep
• Dimensions: 12U rack space

How to Install

Installing the Tripp Lite by Eaton 12U Wall-Mount Bracket is simple and straightforward. Follow these steps:

1. Determine the desired location on the wall where the bracket will be mounted.
2. Use a level to mark the position, ensuring that the keyhole mounting slots are properly aligned with the wall studs, which are typically 16 inches apart.
3. Drill holes for the mounting screws as needed.
4. Attach the bracket to the wall using the included 12-24 mounting screws.
5. Install your rack equipment as needed, utilizing the hinged access for easy management.
6. Optionally, install the shelf at the top or bottom to hold non-rack components.

Frequently Asked Questions

• Can this bracket hold non-rack equipment? Yes, the included shelf allows you to hold items like routers or UPS systems.
• Is the bracket easy to access? Absolutely! The hinged design allows for unrestricted access to equipment from either side.
• What is the maximum weight the bracket can hold? The maximum load capacity is 150 pounds (68 kilograms).
• What tools do I need for installation? You will need a drill, a level, and standard hand tools to complete the installation.
• Is this bracket suitable for outdoor use? The bracket is designed for indoor use; we recommend not exposing it to outdoor conditions.
