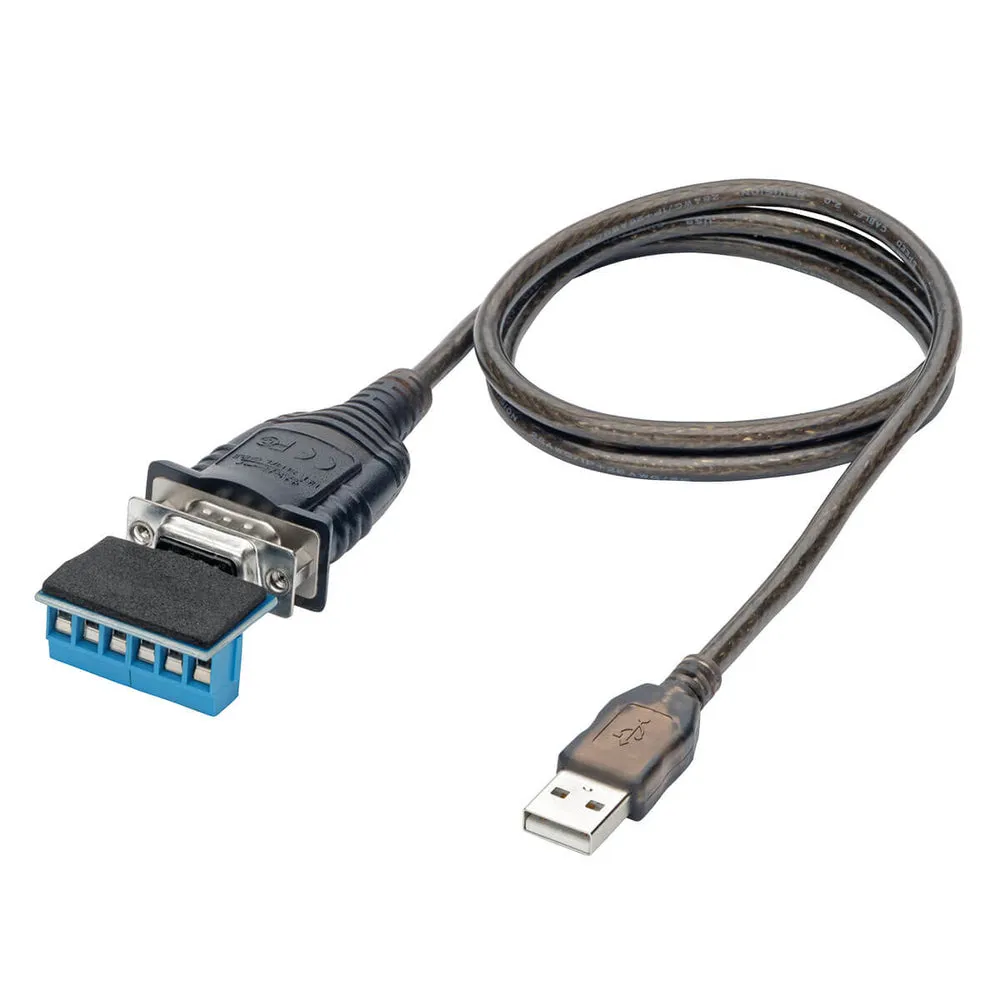

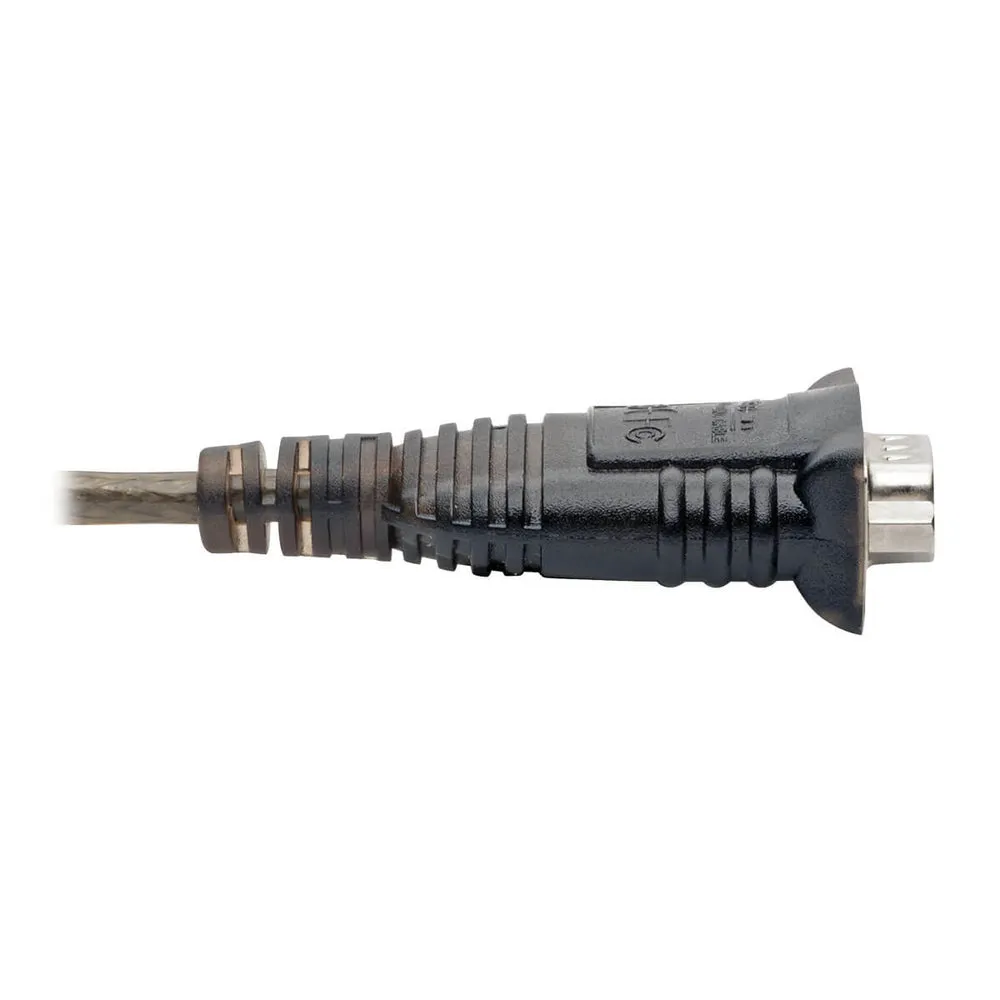

Tripp Lite USB Serial Cable Adapter with FTDI and Retention for RS422/RS485

The Tripp Lite U209-30N-IND USB to RS485 adapter cable is the perfect solution for connecting your computer to serial devices such as printers, routers, and surveillance cameras. With data transfer speeds up to 230 Kbps, this cable is almost twice as fast as a built-in serial port. The cable is USB-powered, so no bulky or obtrusive external power supply is required. Double shielding protects against EMI/RFI line noise that can distort or destroy data.

Features

Cable length: 0.76m (30 inches)

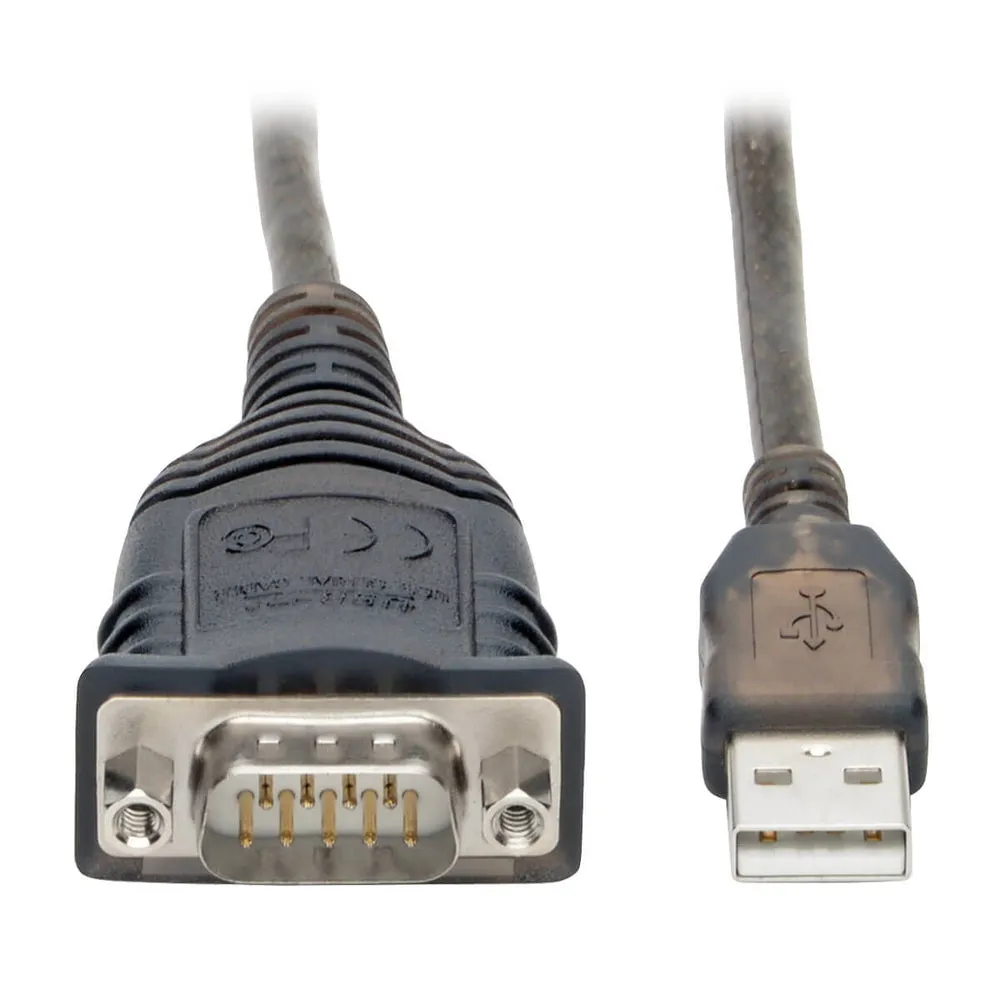

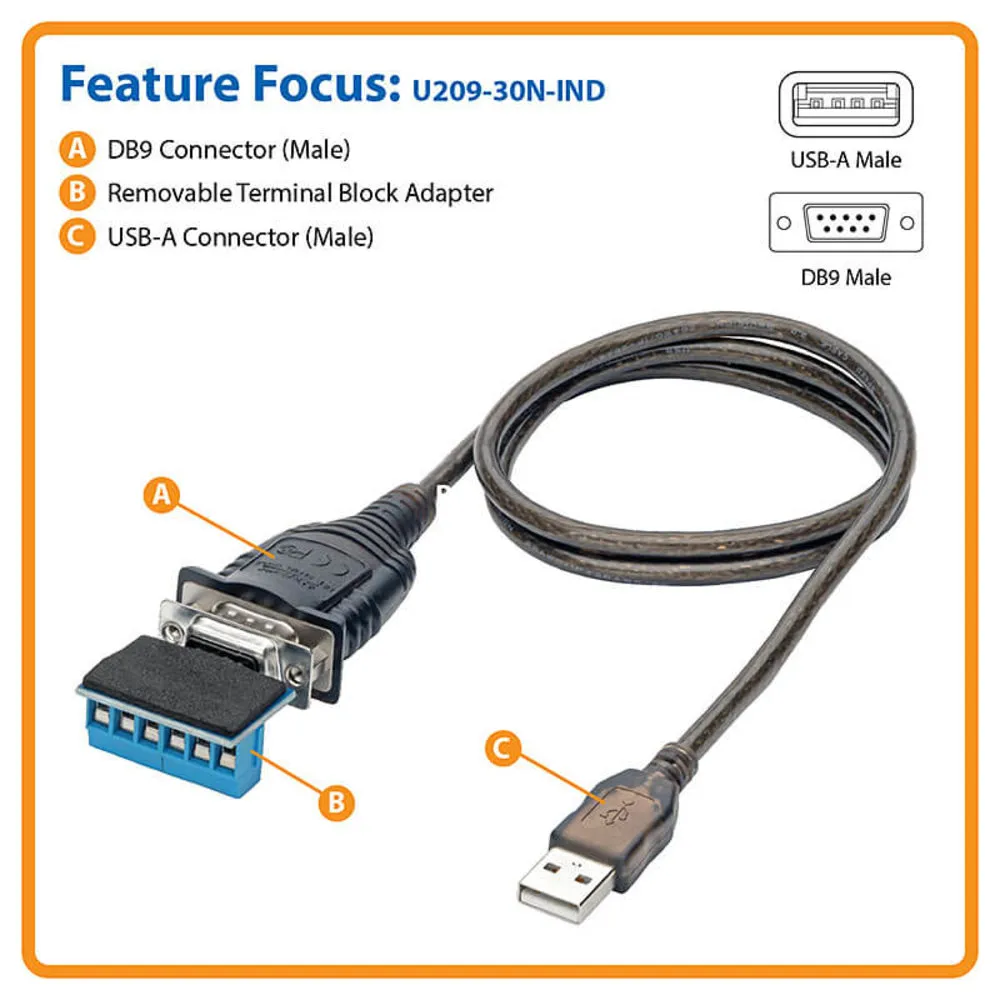

Connector 1: USB A (MALE)
Connector 2: DB9 (MALE)
Product color: Black
Certification: CE, FCC, RoHS, REACH, WEEE
Connector gender: Male connector/Male connector
Package weight: 80g
Package depth: 104.9mm
Package height: 31mm
Package width: 118.1mm
Master (outer) case height: 115.1mm
Master (outer) case width: 329.9mm
Master (outer) case weight: 1200g
Master (outer) case length: 134.9mm
Quantity per master (outer) case: 10

Specifications

Turns your computer's USB port into an RS422 or RS485 serial port
No external power source needed
Supports USB 2.0 specifications
Data transfer speeds up to 230 Kbps
Backward compatible with USB 1.1 devices
Hot-swappable with built-in FTDI chipset
COM retention feature for convenient reassigning of COM values to ports
Supports RS485 auto-transceiver turn around with unique featured ATTA hardware
Remote wake-up and power management

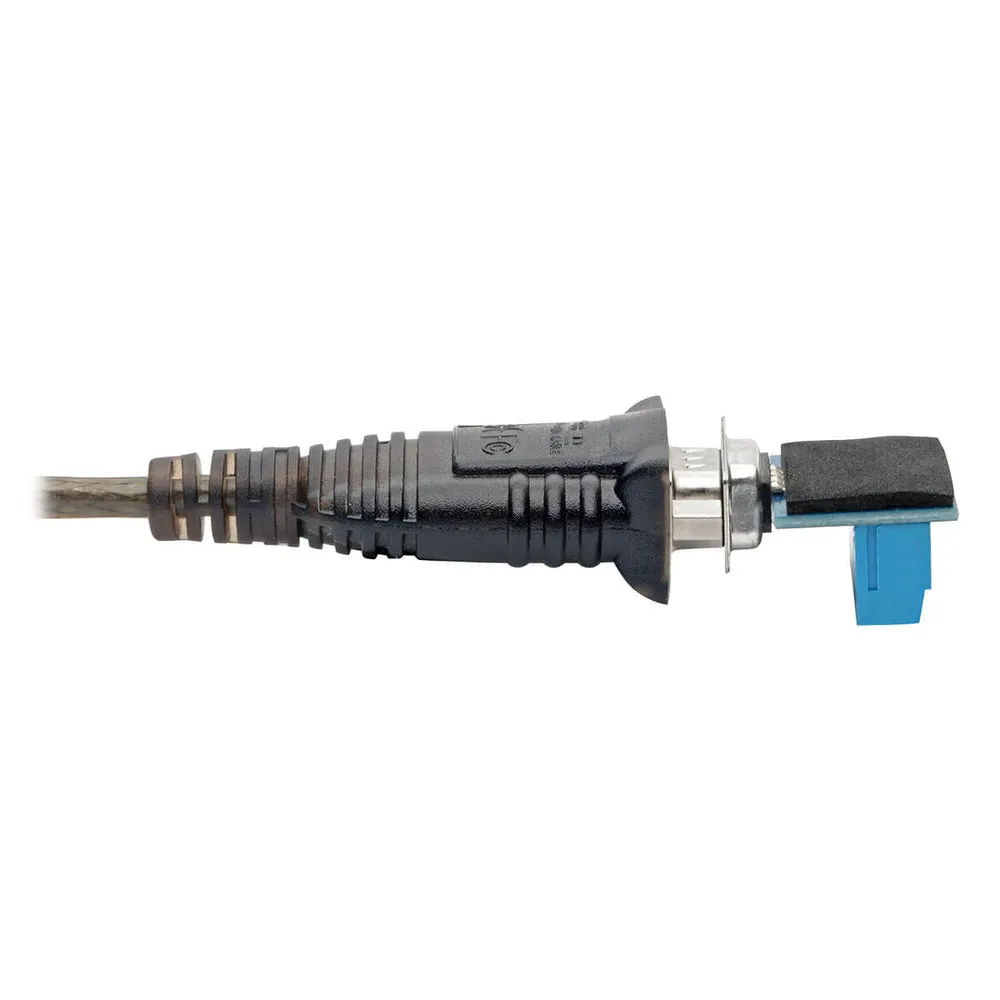

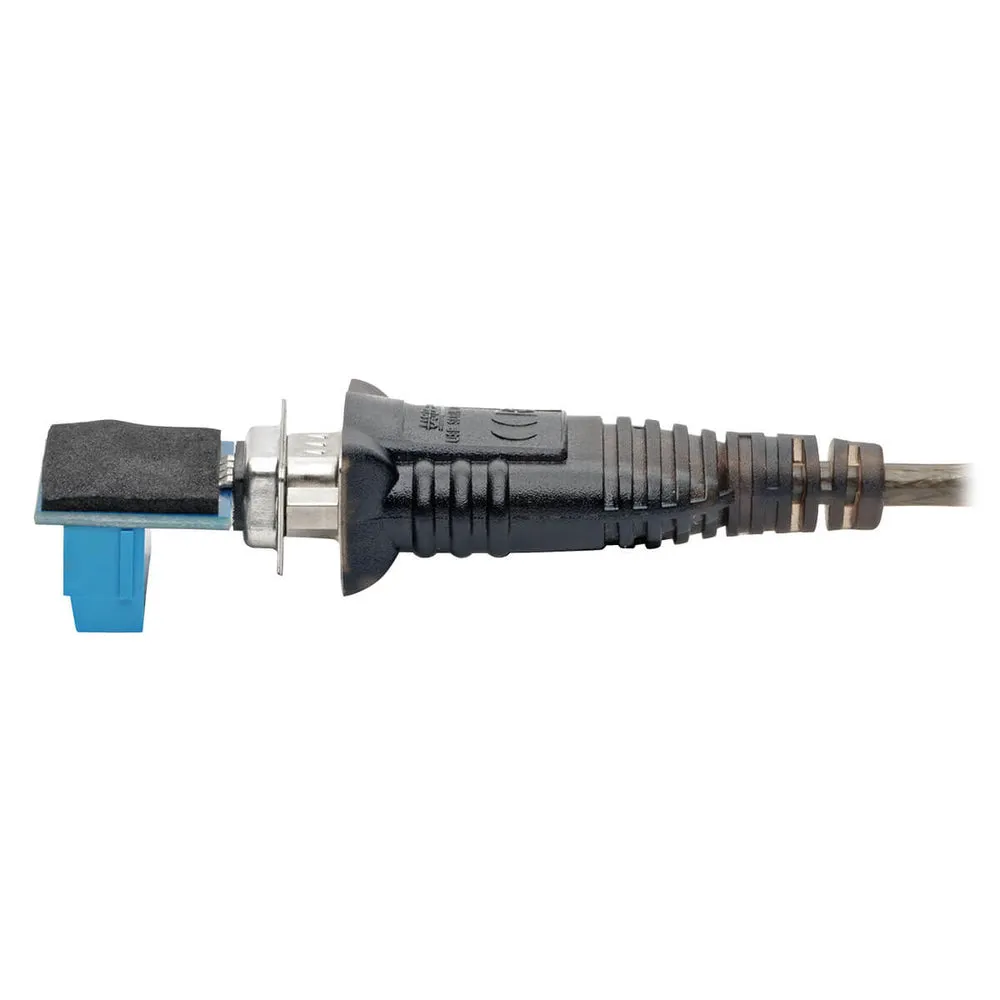

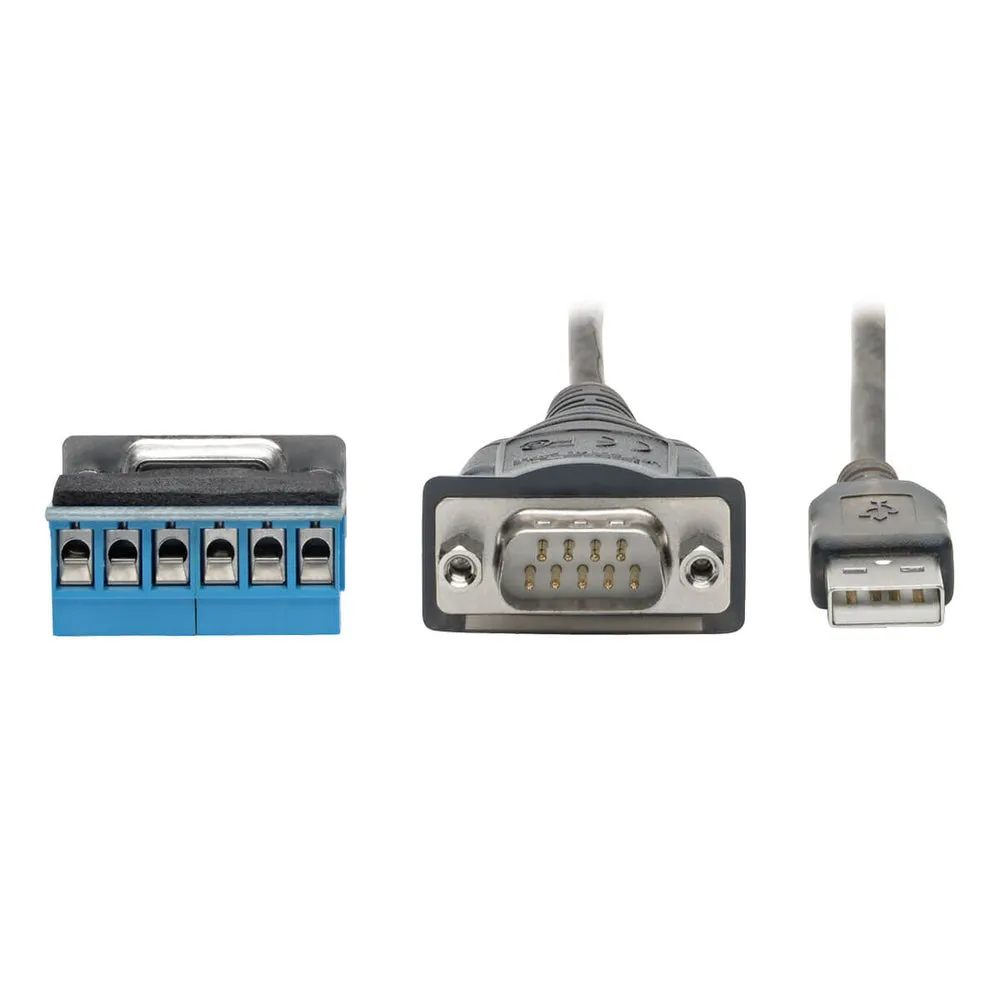

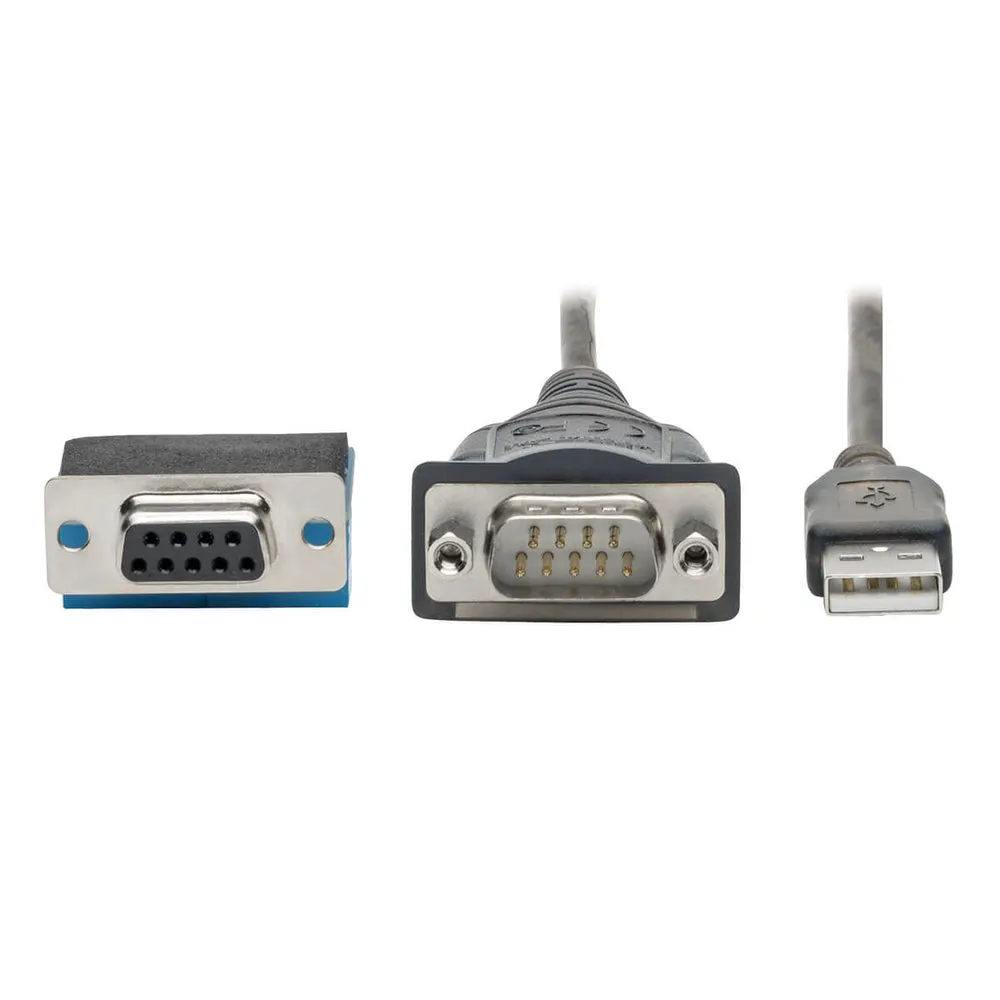

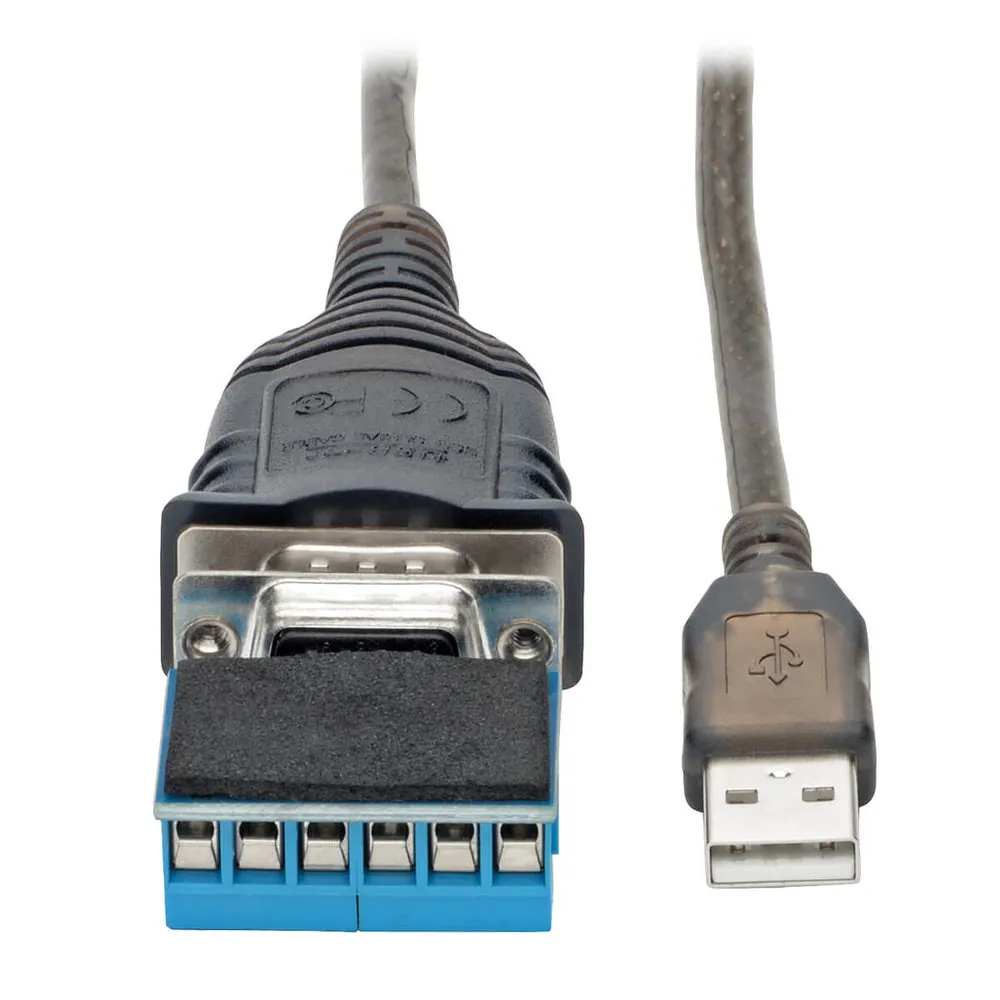

DB9-to-terminal-block adapter included for making hardwire connections
Foil and braid shielding helps fight against electromagnetic interference and radio frequency interference (EMI/RFI)
Auto-sensing feature solves DCE/DTE conflicts without the need for cross-wired serial cables or adapters
Compatible with Windows, Mac, and Linux
3-year warranty

Typical Application

Connect and control serial-based printers, scanners, surveillance cameras, and magnetic card readers. Create messages for digital sign boards with serial ports to avoid the expense of upgrading your sign board.
